DS5100 REFERENCE MANUAL
110
6

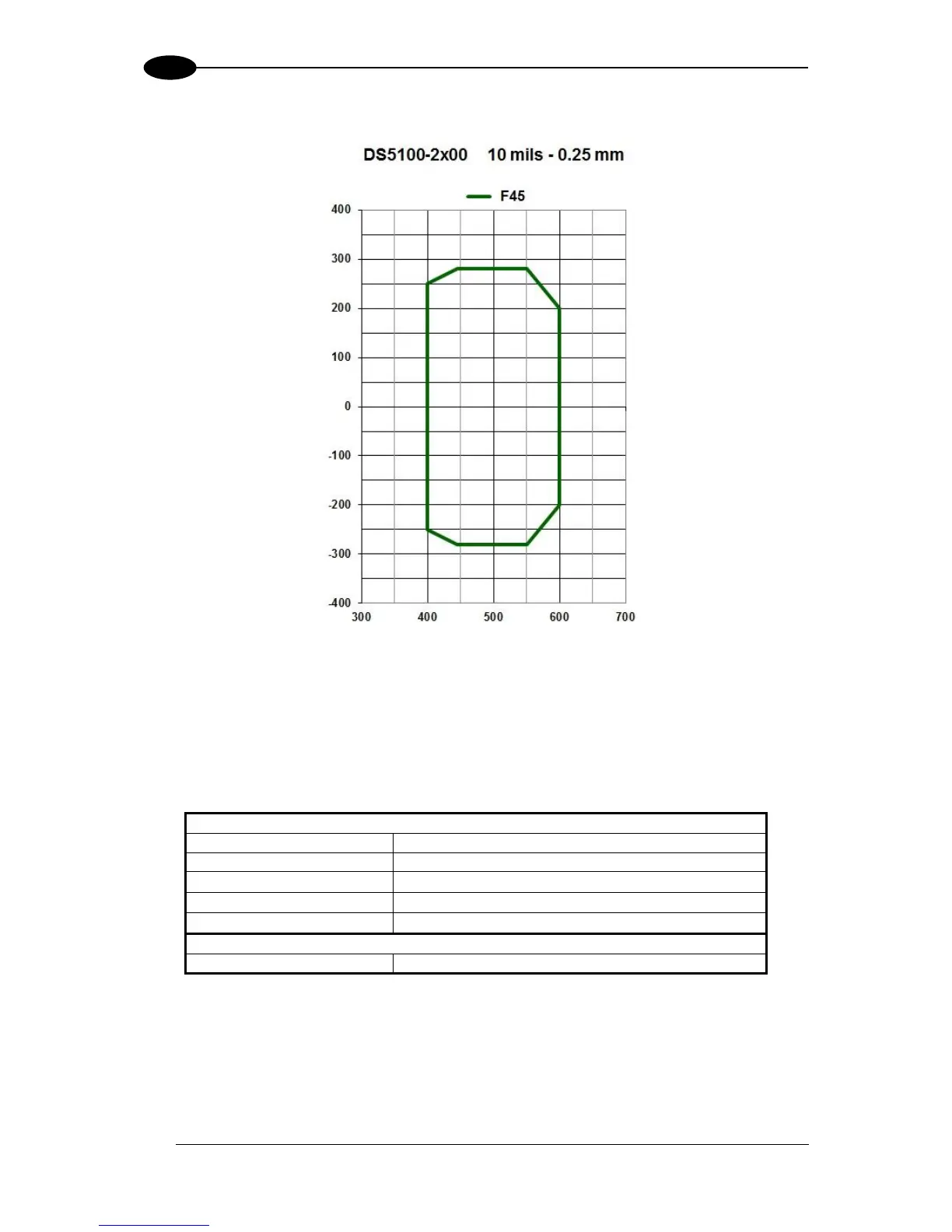

6.4.3 Linear Long Range Models
NOTE: (0,0) is the center of the laser beam output window.
CONDITIONS
Hardware Settings
Code Symbology
Code 128
PCS
0.90
"Pitch" angle
0
"Skew" angle
15
"Tilt" angle
±45
Software Parameters
Reading Mode
Linear
Reading Distance
Horizontal Reading Width
12 16 20 24 28
in
0
16
-8
-12
4
12
mm
-4
-16
8
