NOTE: When entering the X-PRESS interface on the DS5100-XX2X the
Oscillating Mirror remains in the default fixed position (0°) in order to make
barcode reading easier while performing the X-PRESS functions.
Use a code suitable to your application to test the system. Alternatively, you can use the
Datalogic Test Chart (Code 128).
1. Enter the Test mode function by holding the X-PRESS push button pressed until the
TEST LED is on.
2. Release the button to enter the Test mode function.
Once entered, the Bar-Graph on the five LEDs is activated and if the scanner starts
reading barcodes the Bar-Graph shows the Good Read Rate. In case of no read
condition, only the STATUS LED is on and blinks.

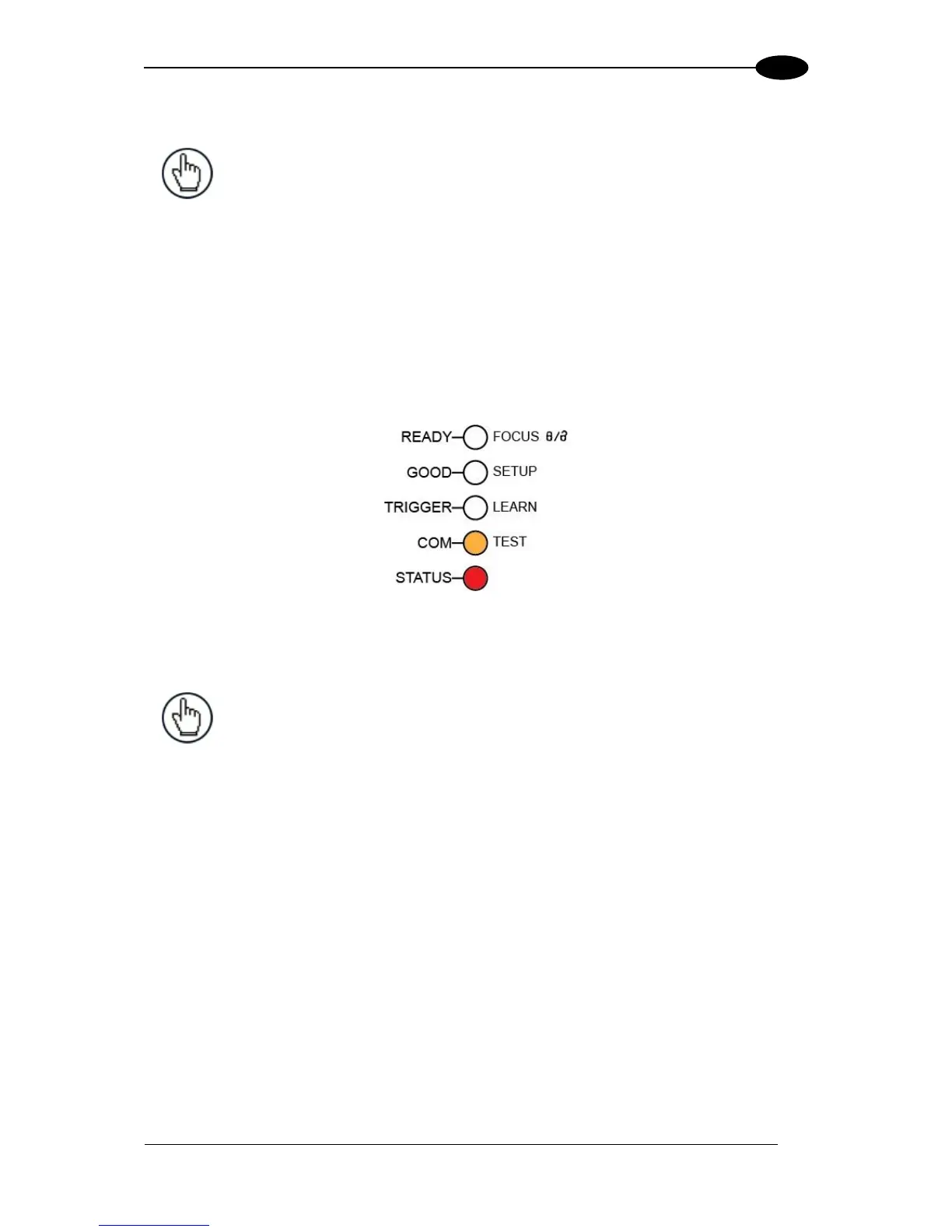

Figure 12 – X-PRESS Interface: Test Mode Function
3. To exit the Test Mode, press the X-PRESS push button once.
