ELECTRICAL INSTALLATION
69
4

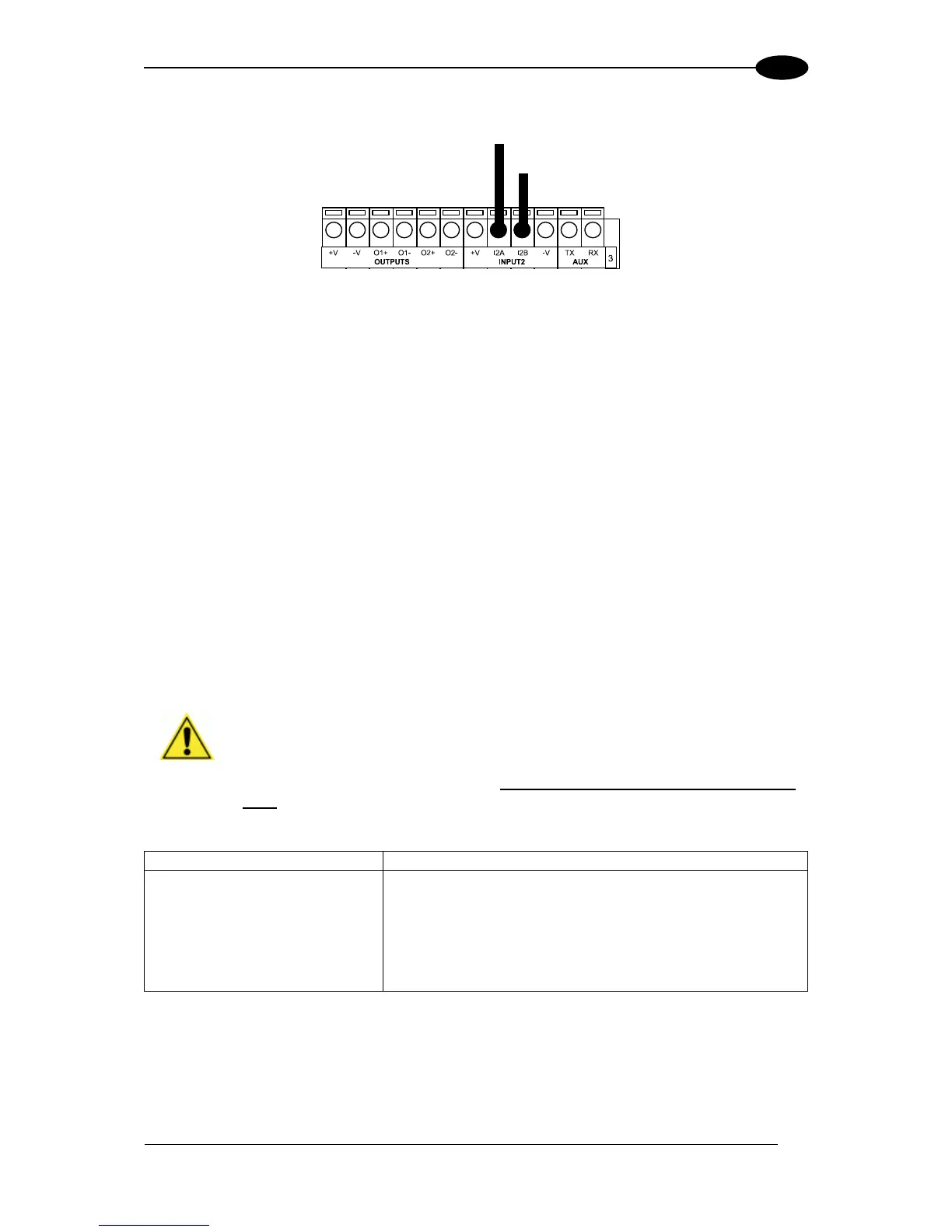

Pulled up to External
Input Device Power
Input
Signal
Input Device
Figure 48 - NPN Input 2 Using External Power
4.5.1 Code Verifier
If the scanner is used as a Code Verifier, the verifier code can be configured in software
through the Genius configuration program. However it is also possible to use one of the
inputs to trigger when the scanner should store a code read as the verifier code.
The Code Verifier parameter must be enabled, and the configuration parameters to allow
correct Code Type reading must be saved to the scanner in order to read the verifier code.
When the selected input is activated, the next read code will be stored as the verifier code in
the scanner's non-volatile (Flash) memory.
For more details see the Verifier Parameters in the "5K Family Software Configuration
Parameter Guide” Help file".
4.6 OUTPUTS
Two general purpose outputs are available.
CAUTION: For Ethernet models, when Outputs 1 and 2 are connected
through the CBX connection box, they become opto-isolated and polarity
sensitive and acquire the electrical characteristics listed below. To function
correctly, they require setting the Output Type configuration parameter to
NPN for the respective output.
CBX100/500
Function
+V
Power Source - Outputs
O1+
Output 1 +
O1-
Output 1 -
O2+
Output 2 +
O2-
Output 2 -
-V
Power Reference Outputs
The meaning of the two outputs Output 1 and Output 2 can be defined by the user (No Read,
Right, Wrong, etc.). Refer to the Genius Help On Line.
By default, Output 1 is associated with the No Read event, which activates when the code
signaled by the external trigger is not decoded, and Output 2 is associated with the Complete
Read event, which activates when all the selected codes are correctly decoded.
