5.7 ID-NET MULTIDATA NETWORKS
For a Master/Slave Multidata layout each scanner has its own reading phase independent
from the others; each single message is sent from the master scanner to the Host computer.

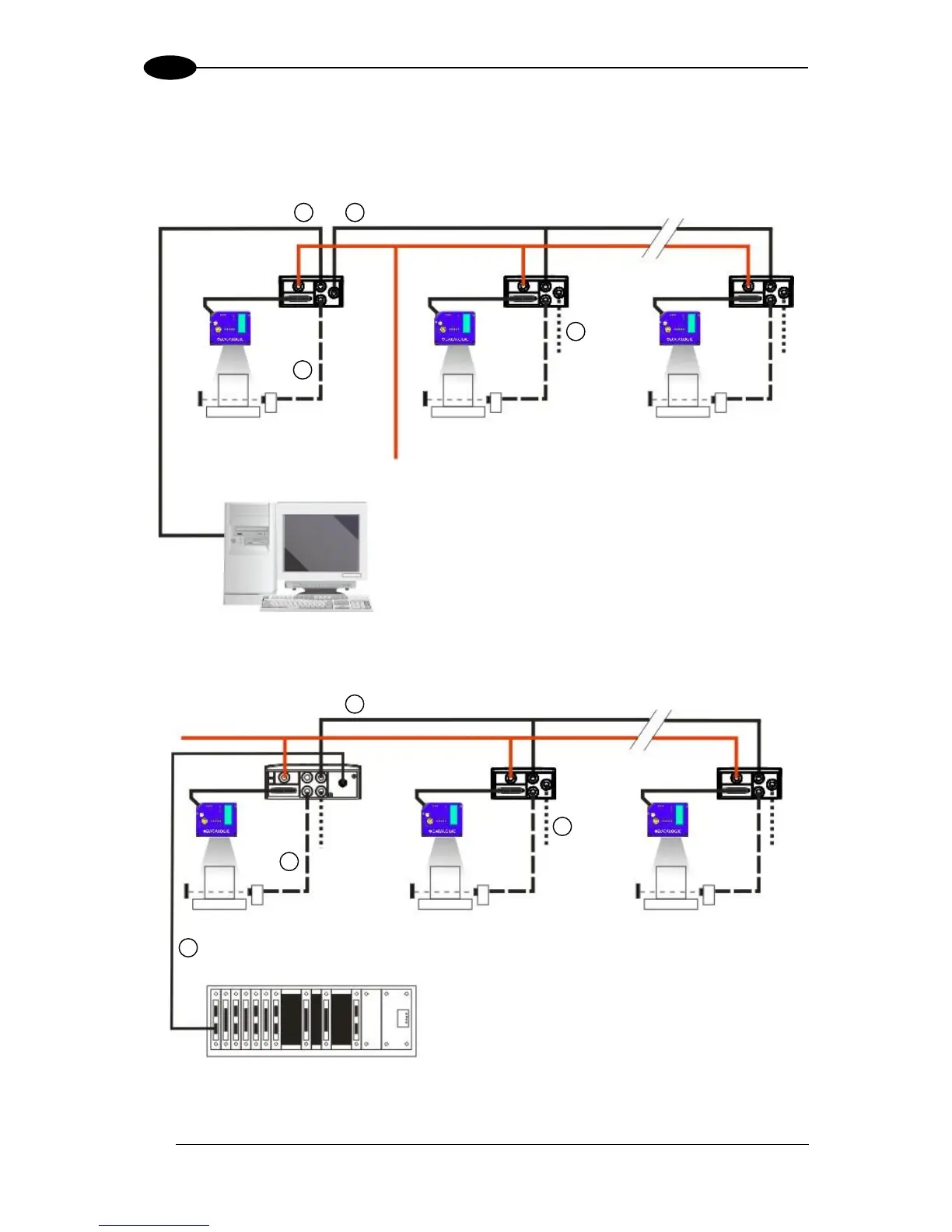

Figure 66 – ID-NET Multidata with Serial Host
Figure 67 – ID-NET Multidata with Fieldbus Host
Main Serial Interface (RS232 or RS485)
Auxiliary Serial Interface (Local Echo) (RS232)
External Trigger (for On-Line Mode)
ID-NET (up to 32 devices, max network extension of 1000 m)
Auxiliary Serial Interface (Local Echo) (RS232)
External Trigger (for On-Line Mode)
ID-NET (up to 32 devices, max network extension of 1000 m)
