TYPICAL LAYOUTS
87
5
The QLM600 Profibus Gateway active connection module can also be used. System
configuration can be accomplished through the Auxiliary interface of the Master scanner
(QLM600 Aux connector) using the Genius configuration program or Genius based Host
Mode programming.

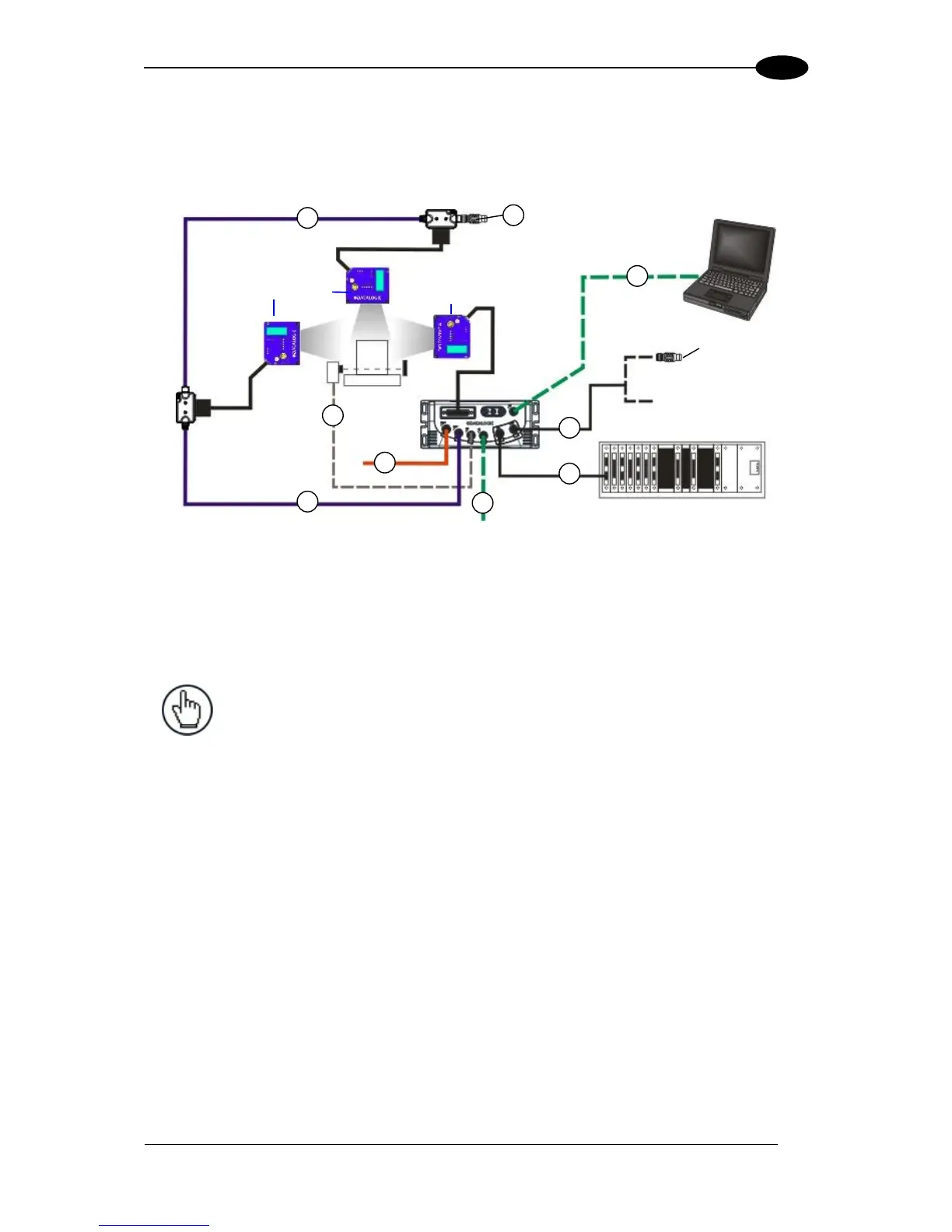

Figure 65 - ID-NET Synchronized Network – DS5100 Master with QLM600 + DS5100 Slaves with QL100s
 Input Power
 Profibus Interface
 External Trigger (for On-Line Mode)
 External Digital I/O Devices
 Aux port for Reader Configuration
 ID-NET Network
 ID-NET Terminator
NOTE: The ID-NET network must be terminated inserting an ID-NET
terminator into the last QL in the network. ID-NET on the QLM600 is internally
terminated.
QLM600
ID-NET™ Slaves
1
2
6
5
QL100
CBL-1490
CAB-AUX03
QL100
CBL-1480-xx
4
2
3
CBL-1480-xx
Configuration PC
to next Profibus Slave
or
Profibus
Terminator
Profibus Master (Host)
6
7
ID-NET™ Master
Profibus Slave Node
