DS5100 REFERENCE MANUAL
6
1

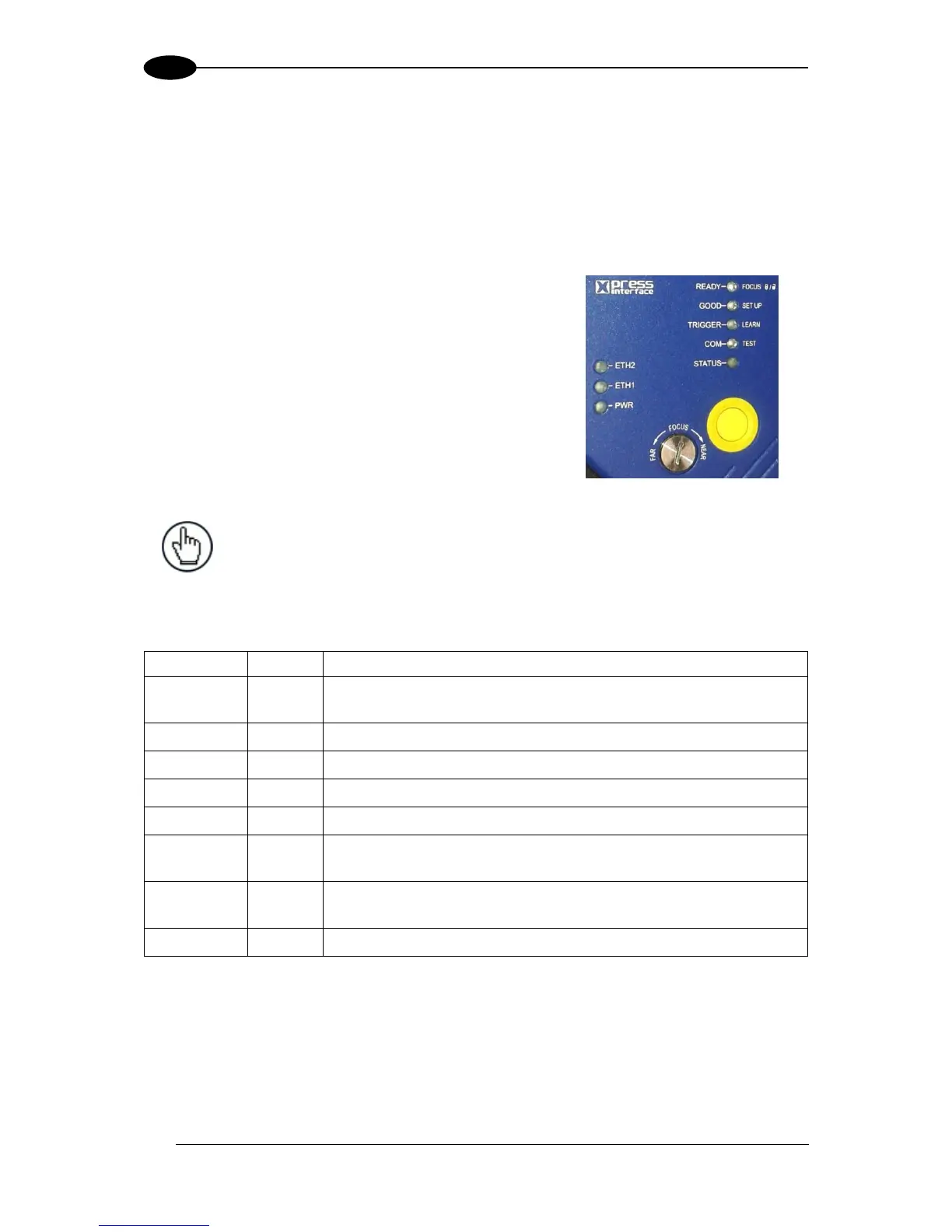

STEP 4 – X-PRESS CONFIGURATION
X-PRESS is the intuitive Human Machine Interface designed to improve ease of installation
and maintenance.
Status and diagnostic information are clearly presented by means of the colored LEDs,
whereas the single push button gives immediate access to the following relevant functions:
 AutoSetup to self-optimize and auto-configure reading
performance in demanding applications
 AutoLearn to self-detect and auto-configure for
reading unknown barcodes (by type and length)
 Focus Lock to memorize the mechanical focus
position
 Test Mode with bar graph visualization to check static
reading performance
 EBC/Profinet-IO network selection to set the scanner
as a Slave in an EBC network. (only for on-board
Profinet 2 port models).
NOTE: When entering the X-PRESS interface on the DS5100-xx2x the
Oscillating Mirror remains in the default fixed position (0°) in order to make
barcode reading easier while performing the X-PRESS functions.
The colors and meaning of the indicator LEDs are illustrated in the following table:
LED
Color
Description
READY
Green
Indicates the device is ready to operate. For Subzero models this
LED blinks during the warm-up phase.
GOOD
Green
Confirms successful reading.
TRIGGER
Yellow
Indicates the status of the reading phase. *
COM
Yellow
Indicates active communication on main serial port. **
STATUS
Red
Indicates a NO READ result.
ETH2
Yellow
Indicates connection to the on-board Profinet-IO network port 2.
Not used on other models.
ETH1
Yellow
Indicates connection to the on-board Ethernet or on-board
Profinet-IO network port 1. Not used on Serial models.
PWR
Blue
Indicates that the reader is connected to the power supply.
* In On-Line mode the TRIGGER LED corresponds to the active reading phase signaled by the Presence Sensor.
In Automatic and Continuous modes the TRIGGER LED is always on indicating that the reader is ready to read a
code.
** When connected to a Fieldbus network through a Host Interface Module inside the CBX500 or through a QLM,
the COM LED is always active, even in the absence of data transmission, because of polling activity on the
Fieldbus network.
During the reader startup (reset or restart phase), the first five LEDs blink for one second.
