STEP 2 – MOUNT AND POSITION THE SCANNER
DS5100 Standard and Subzero Models
1. To mount the scanner, use the mounting bracket to obtain the most suitable position for
the reader as shown in the figures below.

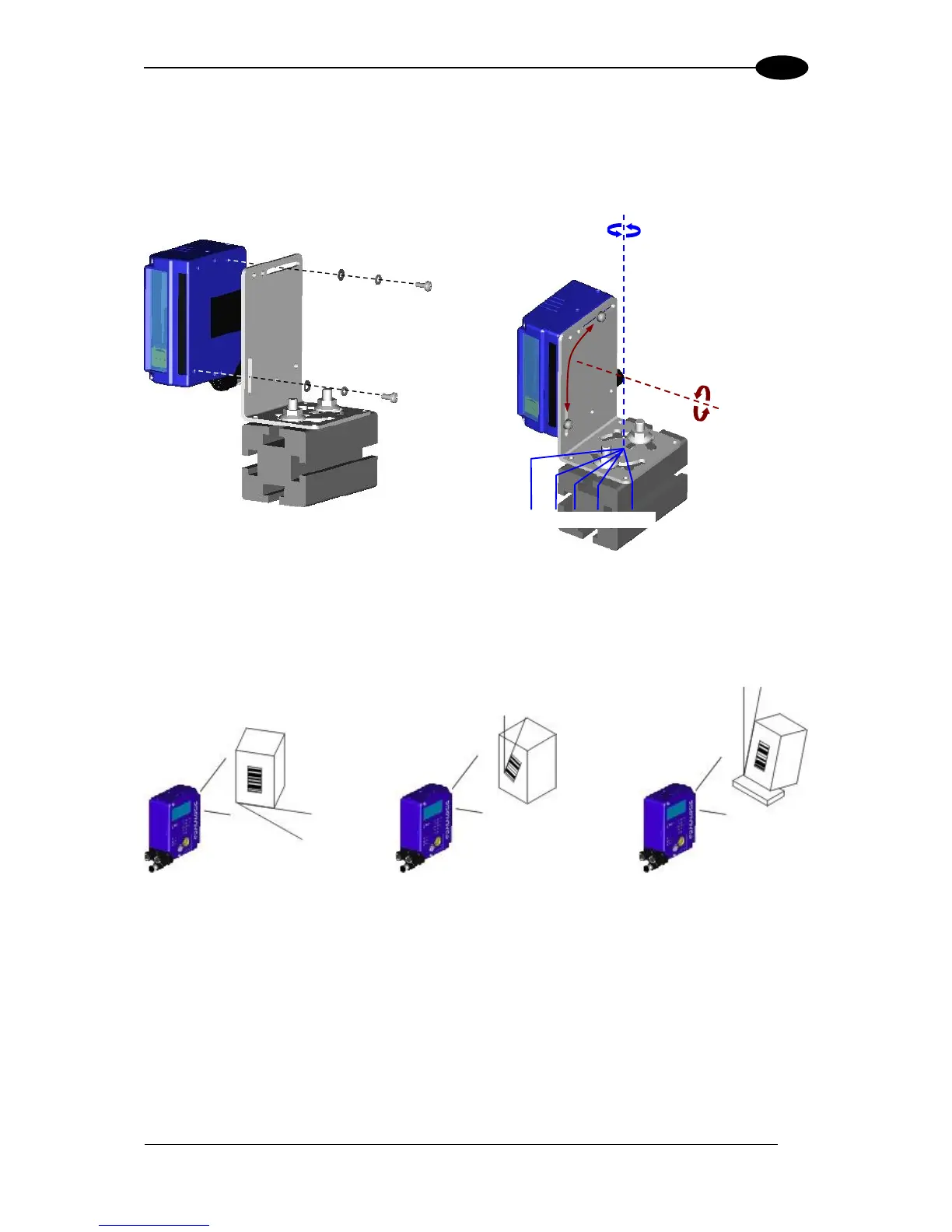

Figure 3 - Positioning with Mounting Bracket
2. When mounting the scanner take into consideration these three ideal label position angles:
Skew 15° to 30°, Tilt 0° and Pitch 0°.
Assure at least 15° Minimize Minimize
Figure 4 –Skew, Tilt and Pitch Angles
3. Refer to the Reading Diagrams in par. 6.4 to decide the distance your scanner should be
positioned at.
