DS5100 REFERENCE MANUAL
140
B
Vdc
GND
I1A
I1B
PNP PH-1 wires
SCANNER
6
5
2
(brown) +10-30 Vdc
(black) NO
(blue) 0 V
V
CC
~
~
+
-
1

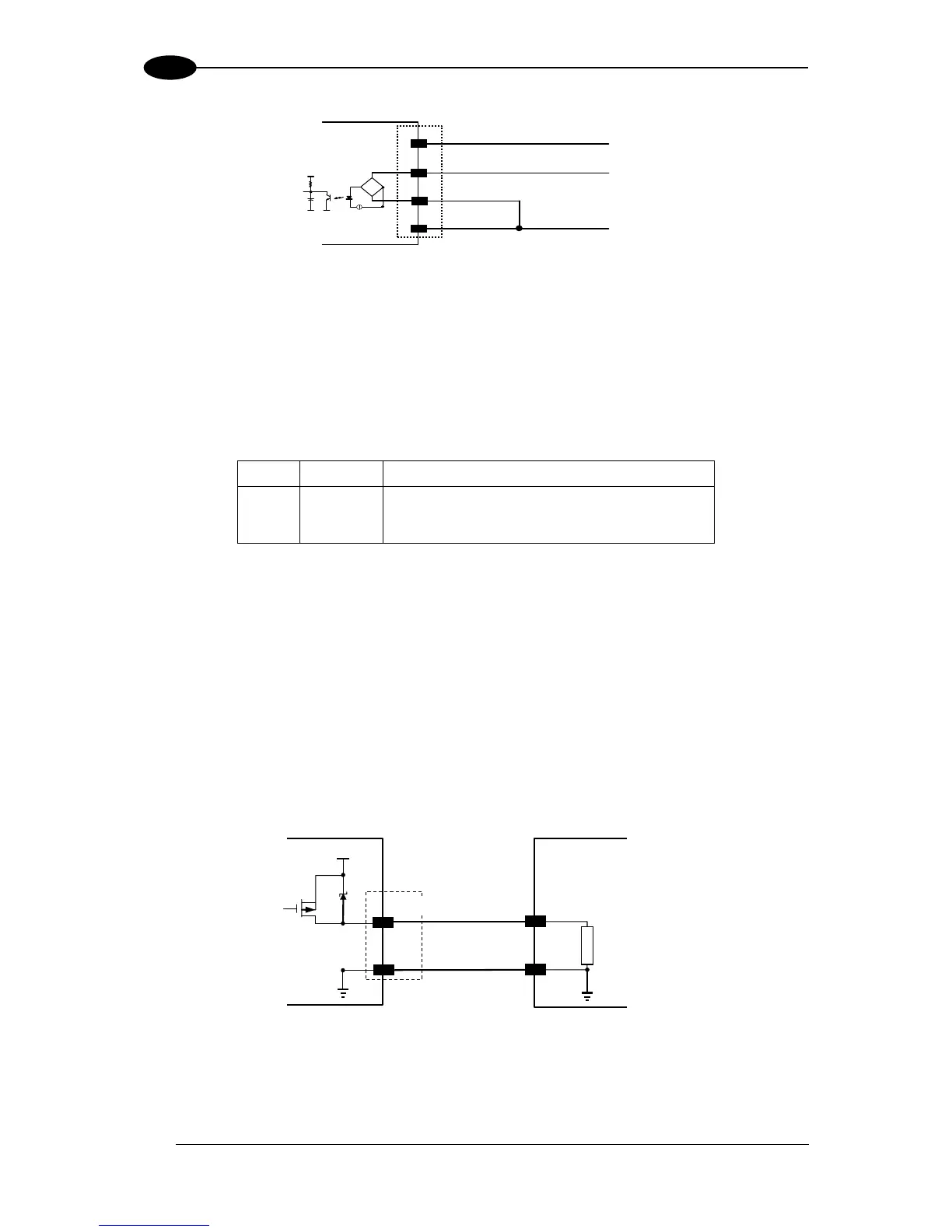

Figure 83 - PH-1 Photocell (PNP) External Trigger Using Scanner Power
OUTPUTS
Two general purpose non opto-isolated but short circuit protected outputs are available on
the M12 17-pin connector.
The pinout is the following:
Pin
Name
Function
9
O1
Configurable digital output 1
8
O2
Configurable digital output 2
2
GND
Output reference signal
The electrical features of the two outputs are the following:
Reverse-Polarity and Short-Circuit Protected
V
OUT
(I
LOAD
= 0 mA) max = 30 Vdc
V
OUT
(I
LOAD
= 100 mA) max = 3 Vdc
I
LOAD
max = 100 mA
The output signals are fully programmable being determined by the configured
Activation/Deactivation events, Deactivation Timeout or a combination of the two. Refer to
the Digital I/O Setting folder in the Genius Help On Line for further details.
PNP
Scanner
USER INTERFACE
9/8
2
Vdc
Figure 84 - PNP Output Connection
