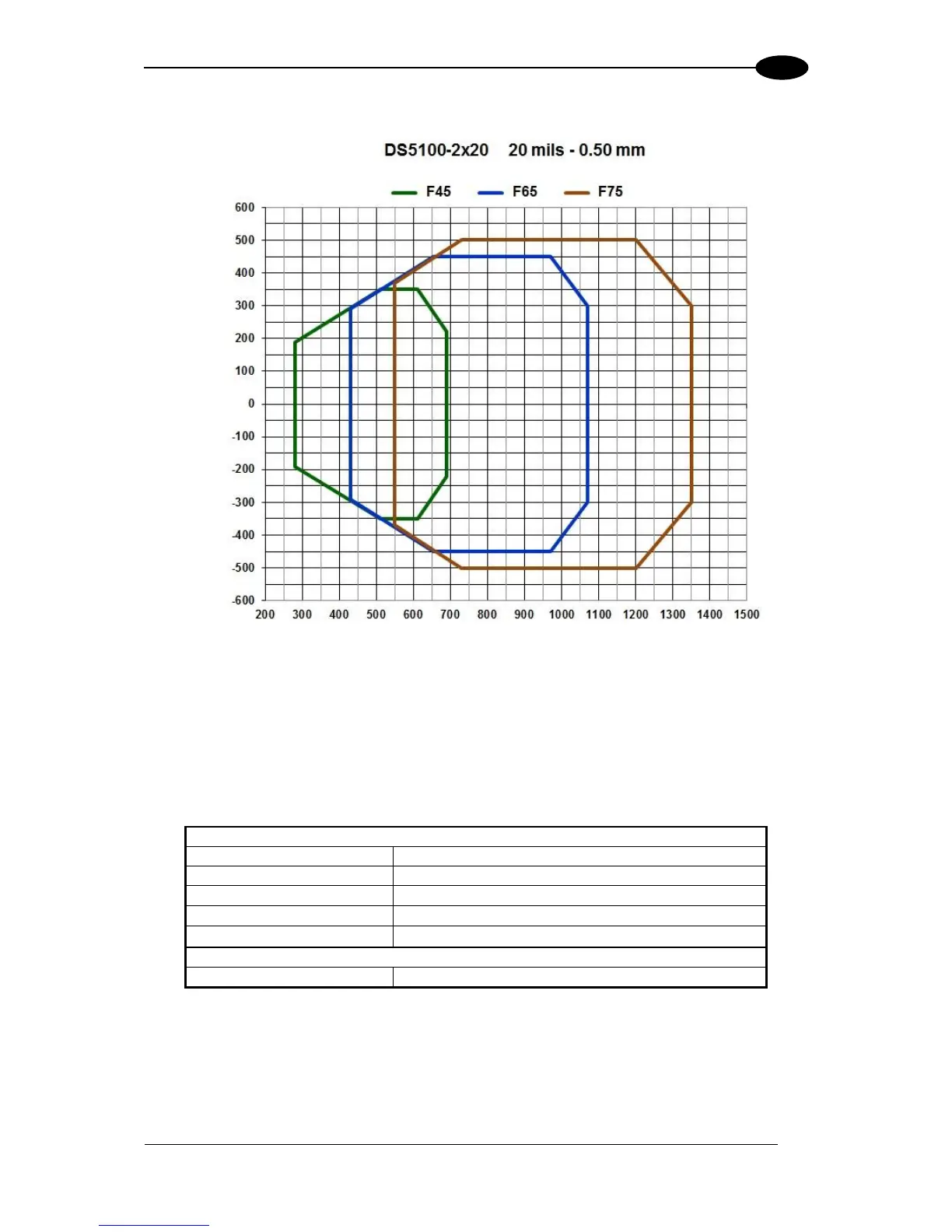

READING FEATURES
127
6
NOTE: (0,0) is the center of the laser beam output window.
CONDITIONS
Hardware Settings
Code Symbology
Code 128
PCS
0.90
"Pitch" angle
0
"Skew" angle
15
"Tilt" angle
±45
Software Parameters
Reading Mode
Linear
Reading Distance
Horizontal Reading Width
8 12 16 20 24 28 32 36 40 44 48 52 56
in
0
20
-8
-12
4
12
mm
-4
-20
8
16
-16
24
-24
