Datalogic MAGELLAN 8300 Product Reference Guide

6-24 Magellan
®
8300/8400
Auxiliary Port Mode
Selects the usage for the scanner’s optional auxilliary port. The choices
listed below are mutually exclusive (only one option can be active at a
time).
• Disabled — Port is inactive
• External Handheld Input — Supports Datalogic
®
handheld scan-
ners (QuickScan 1000, QuickScan 6000, PowerScan) as well as
other models such as the Symbol
®
HotShot. Call your dealer for
more information about supported devices.
• PIR/CT — PIR (Productivity Index Reporting) is a value-added
feature which allows the scanner to provide information to an exter-
nal computer indicating how easy the label was to read. CT
(Checker Training) is also a value-added feature which allows the
scanner to provide feedback to the cashier on how to scan in a more
ergonomic fashion
To set this feature:
1. Scan the SWITCH bar code.
2. Scan your selection from the bar codes below. You’ll need to cover
any unused bar codes on this and the facing page to ensure that the
scanner reads only the bar code you intend to scan.
3. Complete the programming sequence by scanning the SWITCH
bar code.

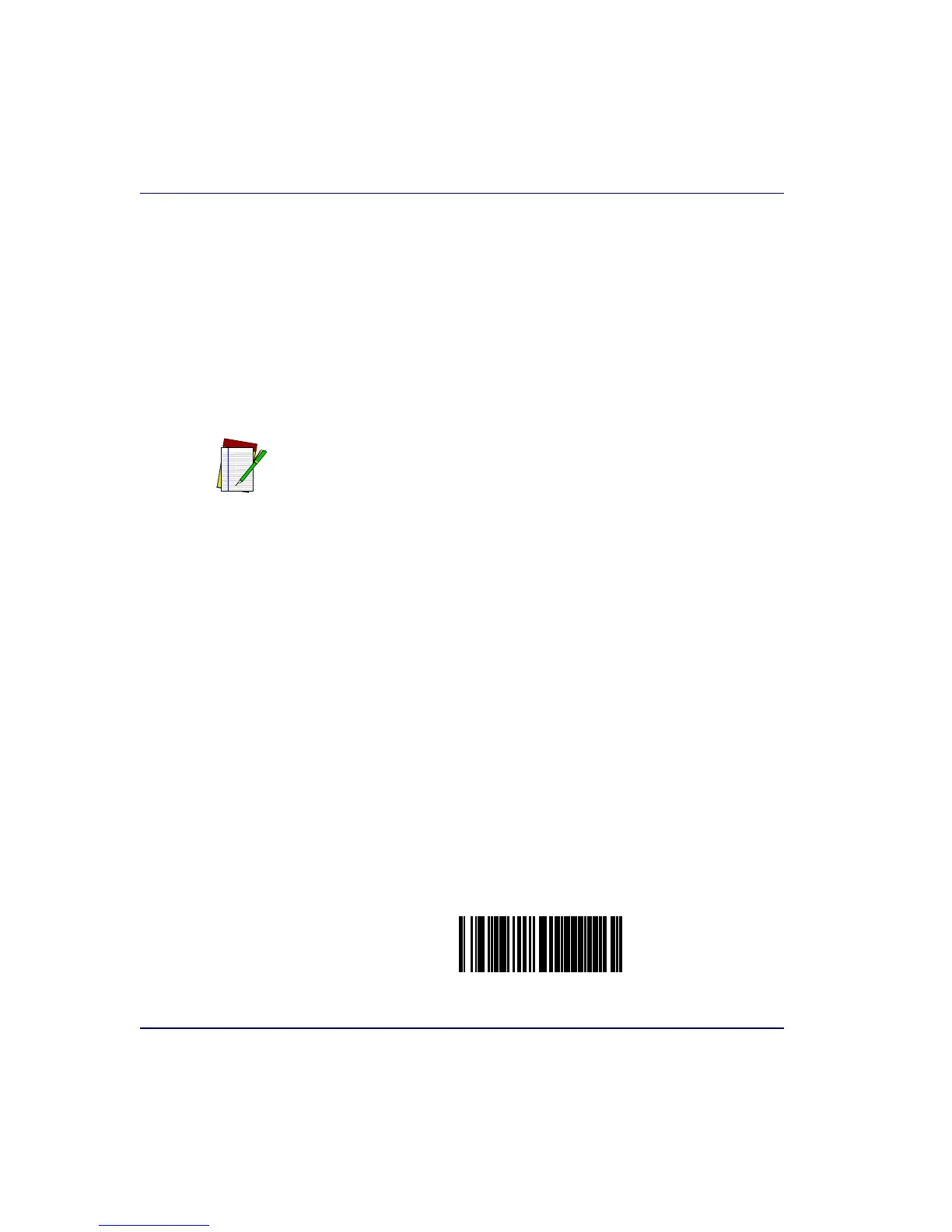

AUXILIARY PORT MODE = DISABLE
NOTE
Cable pinout information for the Auxiliary Port is provided in Appendix B of
this manual. A connected handheld scanner must be configured to transmit
data as outlined in Appendix G.

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
