Interface Related Features
Product Reference Guide 6-85
AIM ID
AIM label identifiers (as opposed to custom characters you select yourself
as with label identifiers) can be included with scanned bar code data. AIM
label identifiers consist of three characters as follows:
A close brace character (ASCII ‘]’), followed by...
A code character (see the table below), followed by
A modifier character (the modifier character is symbol dependent)

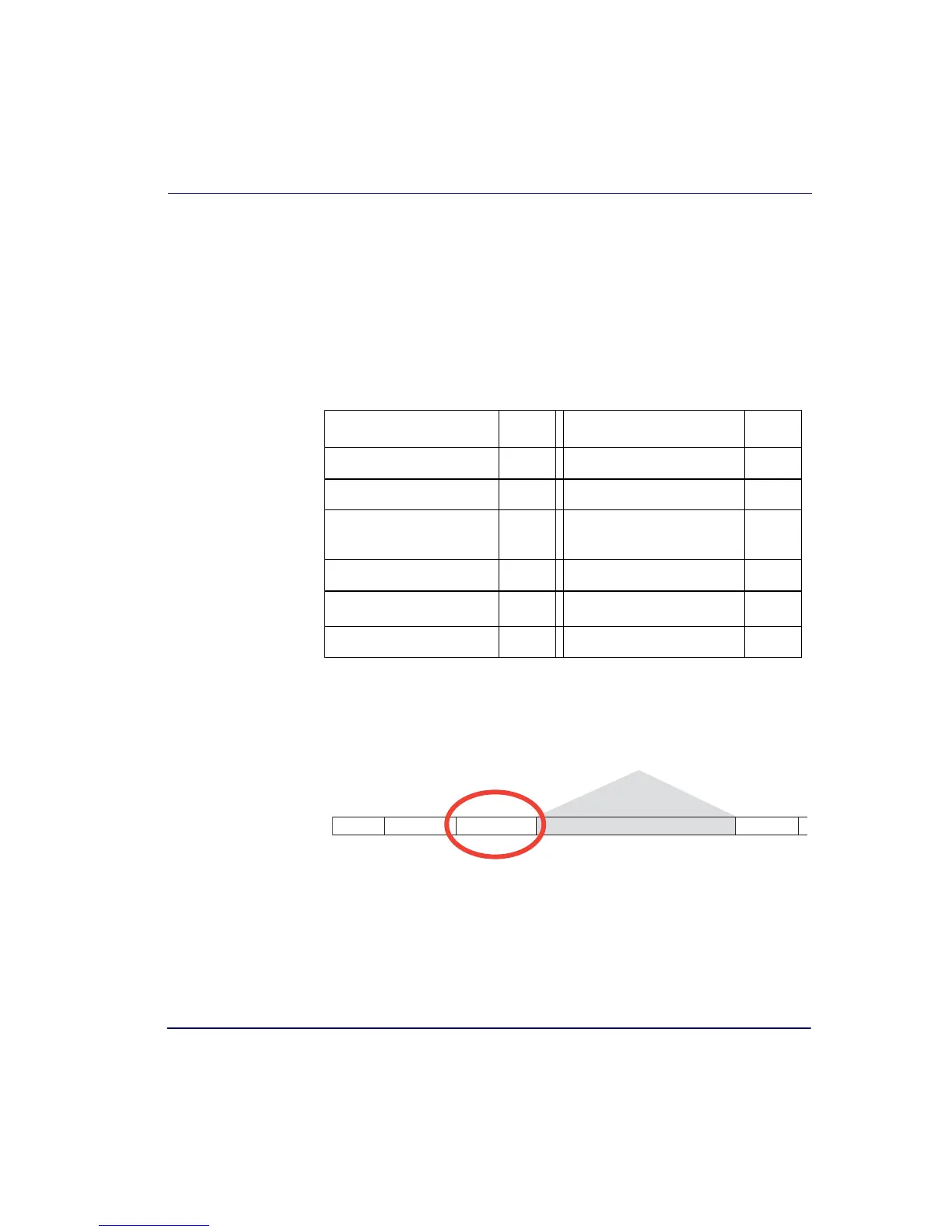

Figure 6-1. AIM ID
SYMBOLOGY CHAR SYMBOLOGY CHAR
UPC/EAN E MSI/Plessey M
Code 39 A PDF 417 L
Codabar F
DataBar Omnidirectional,
DataBar Expanded (RSS)
e
Interleaved.2 of 5 I Standard 2 of 5 S
Code 93
GISBN
X
a
a. ISBN (X with a 0 modifier character)
Code 128/EAN 128 C
Prefix Label ID Label IDBar Code DataAIM ID
SCANNER
