Datalogic MAGELLAN 8300 Product Reference Guide

2-36 Magellan
®
8300/8400
Installation
1. Make sure that all cables are firmly attached (except that the AC/
DC power supply should not be connected to the AC outlet yet).
Reference Figure 2-7 and Figure 2-26.
2. Remove the platter to gain access to the interior lift handle. Grasp
the platter in the positions shown in Figure 2-27 and gently lift it
from the scanner. If the top edge of the platter is blocked, you may
find it easier to grasp the platter vertical bezel as shown in Figure 2-
27b.

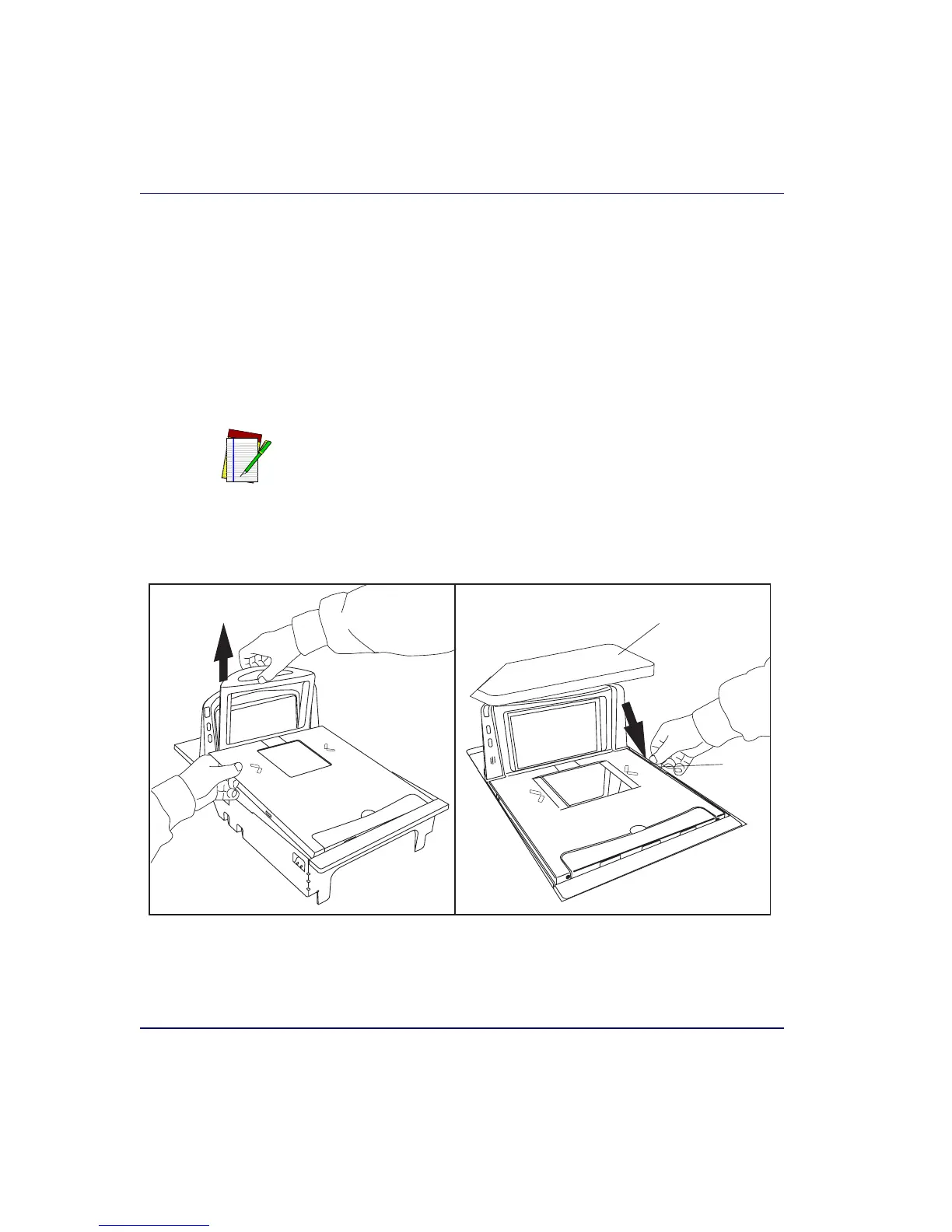

Figure 2-27. Removing the Platter
NOTE
Figure 2-27 illustrates an L-shaped weigh platter, which features a vertical
bezel. Your platter may not contain a vertical bezel.
ab
Coin
(Obstruction)

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
