Datalogic MAGELLAN 8300 Product Reference Guide

Set-Up & Installation
Product Reference Guide 2-37
3. Rotate the Interior Lift Handle up as shown in Figure 2-28 and
hook the fingers of both hands in the lift handles indicated. DO
NOT attempt to lift the unit using the plastic edges, scale frame, or
any features other than the lift handles.
4. Lower the unit into the counter opening, ensuring that none of the
cables are pinched, pierced or crimped.
5. Re-install the Platter and verify that it is flush or just below flush
with the countertop. This is necessary to provide smooth scanning
from either direction. Make adjustments as needed to align the plat-
ter with the counter by moving support rails up or down, or con-
sider installing screws in positions that will allow their use in
adjusting the unit’s position.
6. Once installation is complete, proceed with the Operational Veri-
fication procedures that follow.

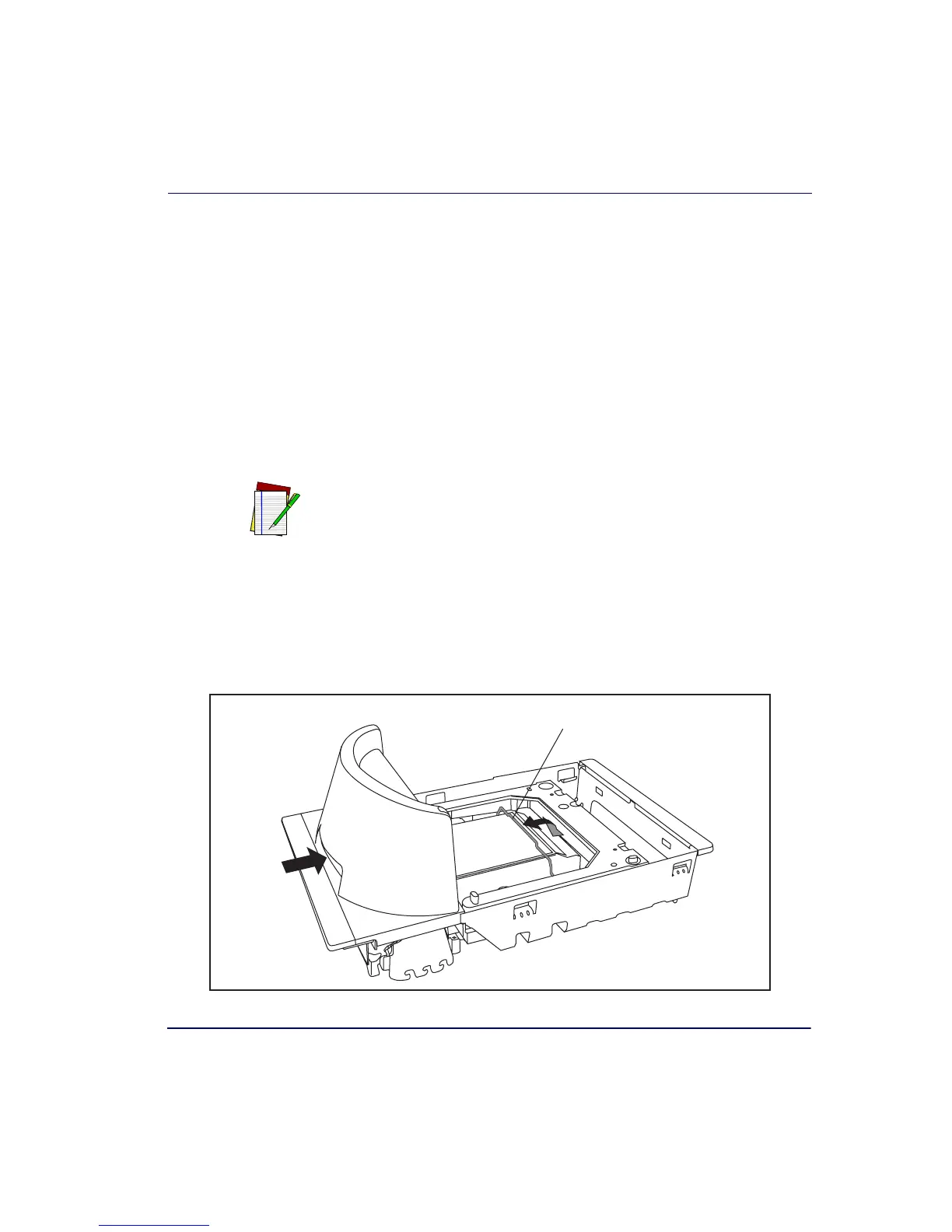

Figure 2-28. Using the Lift Handles
NOTE
Failure to install a scanner/scale in a stable and level position will inhibit
weighing, calibration and zeroing operations. The platter MUST make unob-
structed contact with all of its supports for proper weighing operation.
Rear Lift
Handle
Interior Lift Handle

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
