Checkstand Preparation
Reference Figure 2-7. When performing a first time installation into a
new checkstand, verify before cutting that room will be allowed for
cabling, the AC/DC Power Supply, and any EAS peripheral equipment
(such as controller boxes, etc.). When making the opening, take extra care
to accurately cut to the correct dimensions. Mounting may require instal-
lation of support(s), countertop routing, or other such devices. Depending
upon checkstand design, you may wish to install an item diverter to direct
items toward the scan window. See the instructions in this manual titled
“Counter Cutout” for more details concerning the location and prepara-
tion of the opening.

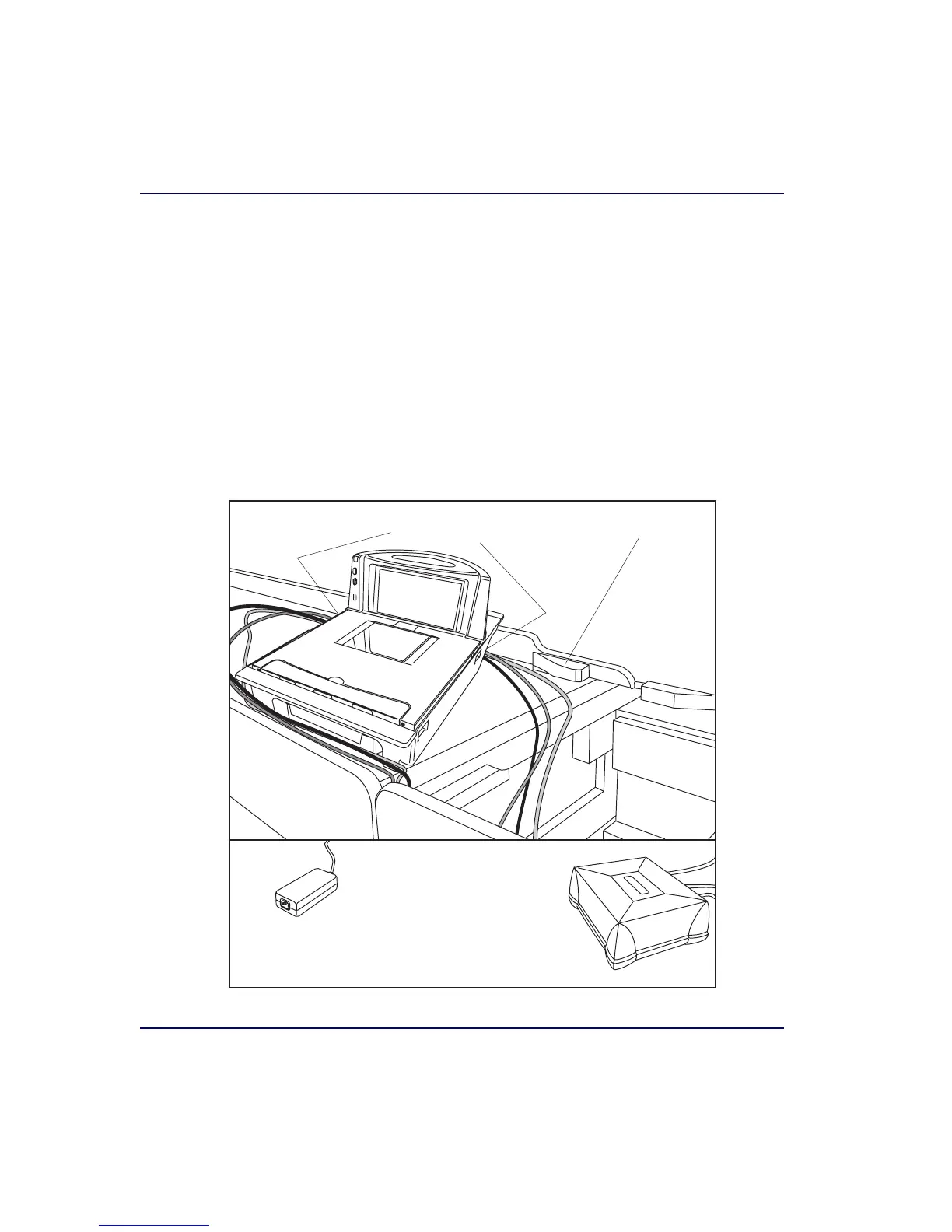

Figure 2-7. Installation Overview
Item Diverter
Connector
Bulkheads
AC/DC Power
Supply (if used)
OPTIONAL:
EAS Controller
Box

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
