Datalogic MAGELLAN 8300 Product Reference Guide

2-2 Magellan
®
8300/8400
Models
Scanner and scanner/scale models (reference Figure 2-1) are available in
different lengths, allowing them to fit with little or no modification into
openings cut for previously installed scanners such as Datalogic
®
Magel-
lan
®
scanners, or NCR
®
scanner models 7820/24 and 7870. Other mod-
els are designed for applications with smaller footprint requirements.
Figure 2-1 provides simplified illustrations of short, medium and long
models. The appearance of your unit may vary. Scanner/scale models also
offer an option for a raised Produce Rail, or a flip-up Produce Bar as
shown in Figure 2-3.

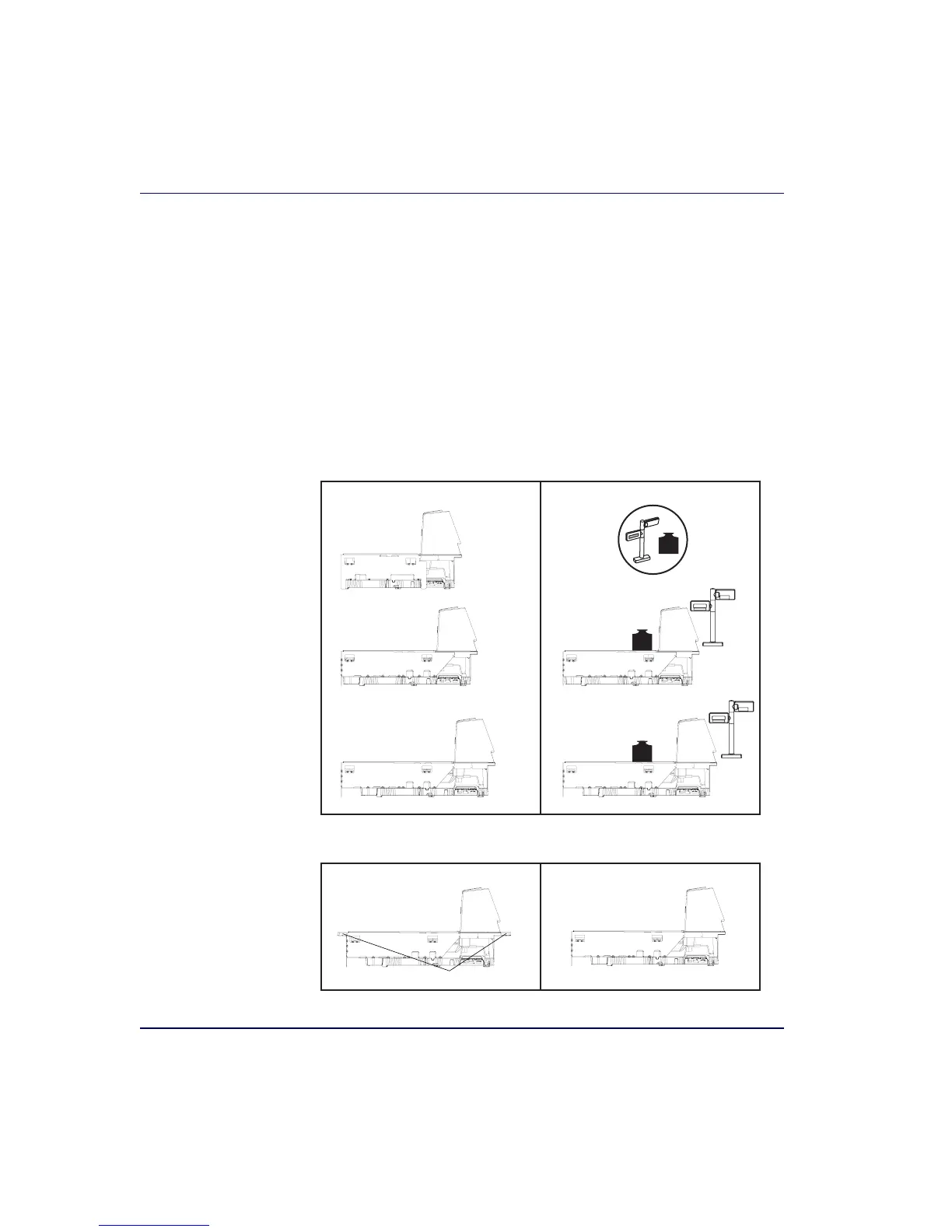

Figure 2-1. Model Examples
Figure 2-2. Flanged and Shelf Model Examples
Short
Medium
Long
Model 8301/8401
Model 8302/8402
Model 8303/8403
Scanner ONLY models Scanner/Scale models
Medium
Long
Model 8304/8404
Model 8305/8405
Flange Model Shelf Model
Flanges

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
