Datalogic MAGELLAN 8300 Product Reference Guide

2-30 Magellan
®
8300/8400
Viewing Angle
The optimum display angle is directly facing the viewer. Tilt and rotatioin
adjustments can be made as shown in Figure 2-22b. To ensure that dis-
plays are easily readable for customers/cashiers of average height, display
heads should be between 48” to 60” (122 to 152 cm) from the floor.

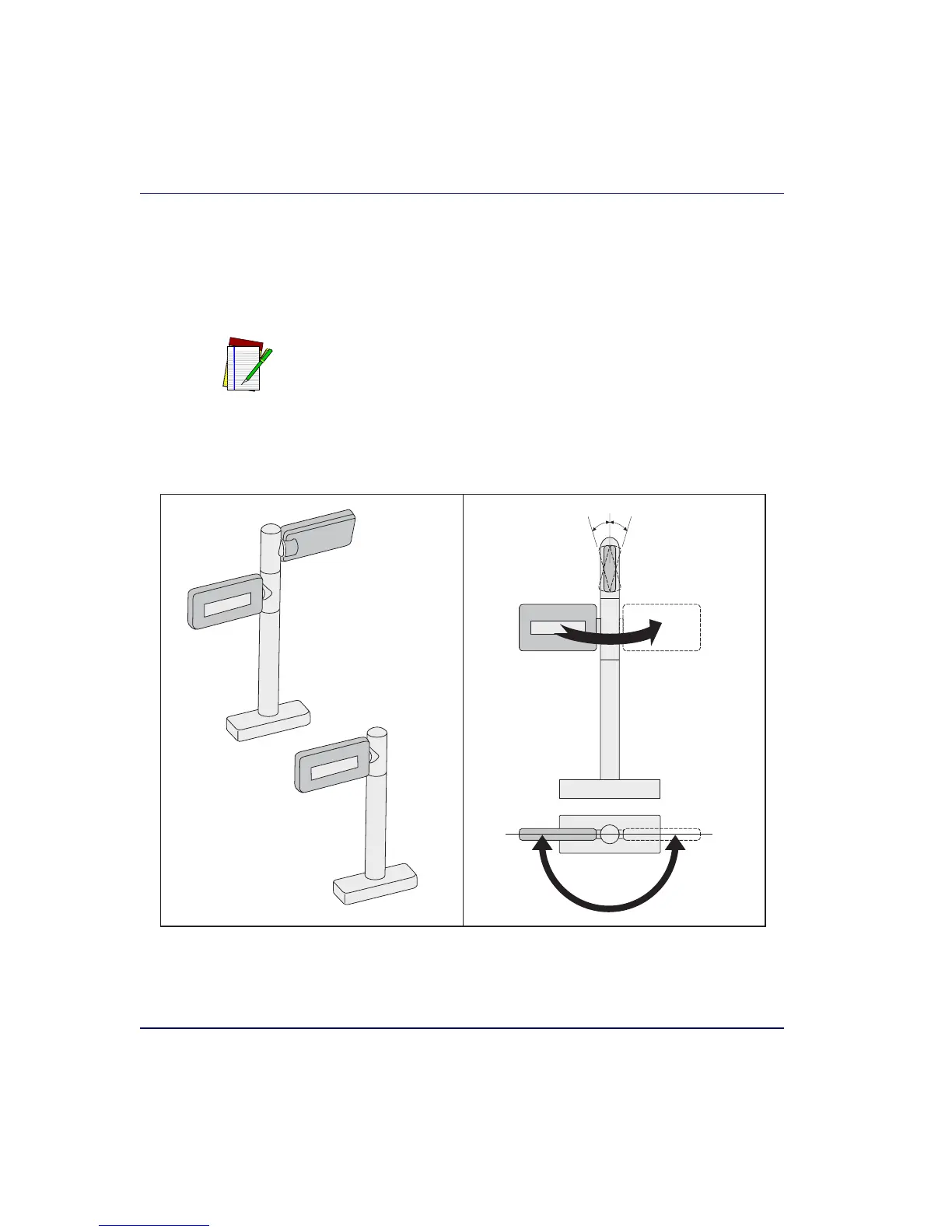

Figure 2-22. Modular/Adjustable Remote Scale Display
NOTE
Check with local Weights and Measures authorities regarding proper posi-
tioning of scale displays used in retail trade.
180˚
Rotation
15˚
Upward or
Downward Tilt
180˚
Rotation
15˚ 15˚
Dual Display
Heads
Single Display
Head
ab

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
