Datalogic MAGELLAN 8300 Product Reference Guide

6-120 Magellan
®
8300/8400
RS-232 TTL
Specifies whether RS-232 interface provides TTL levels on the output
pins TxD and RTS.
Choices are:
• Normal RS-232 levels
•TTL levels
To set this feature:
1. Scan the SWITCH bar code.
2. Scan the bar code below which represents the desired setting for this
feature. You’ll need to cover any unused bar codes on this and the
facing page to ensure that the scanner reads only the bar code you
intend to scan.
3. Complete the programming sequence by scanning the SWITCH
bar code.

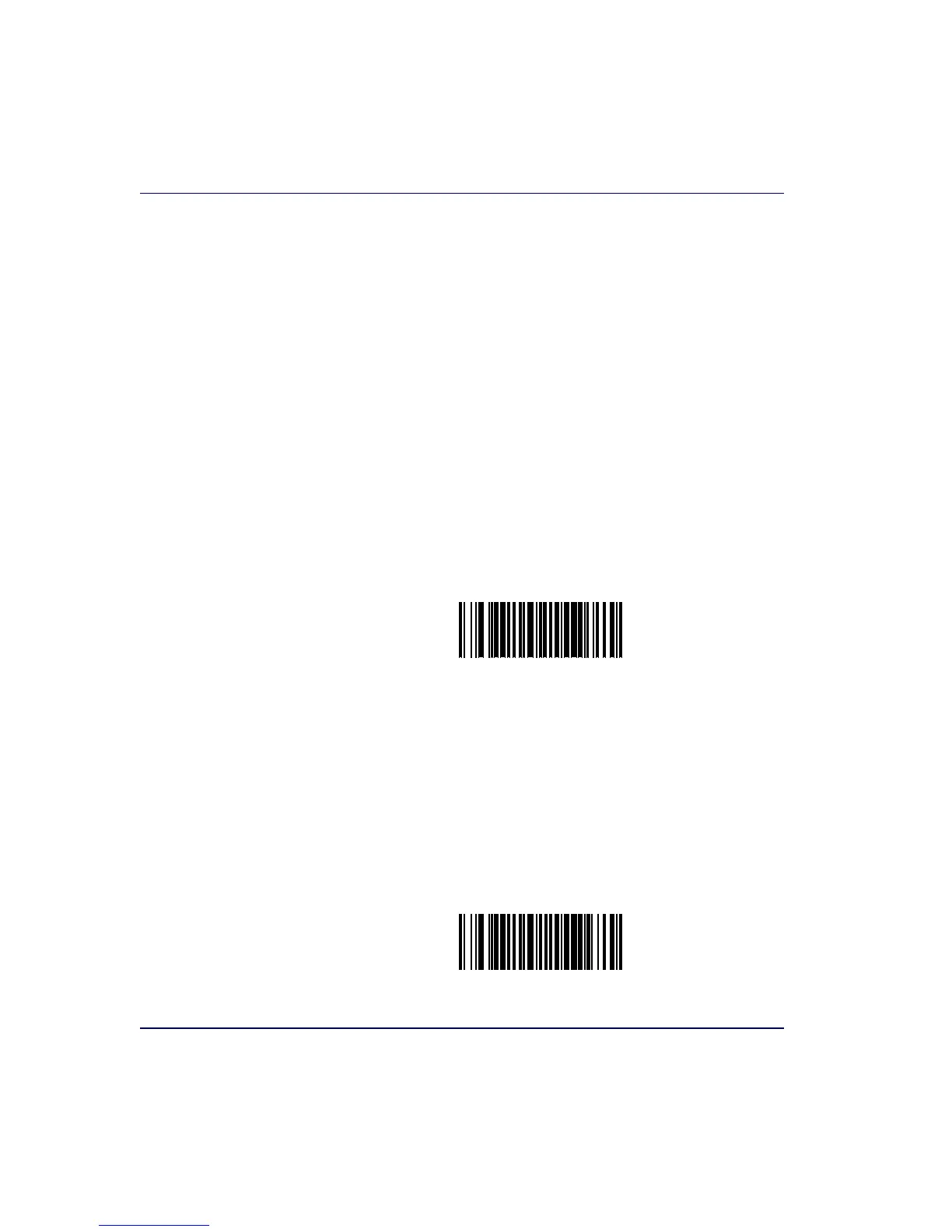

RS-232 LEVELS = NORMAL RS-232
RS-232 LEVELS = TTL

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
