Datalogic MAGELLAN 8300 Product Reference Guide

3-12 Magellan
®
8300/8400
Vertical Scan Window Replacement
The Vertical Scan Window is a replaceable part. Follow the instructions
below to remove and replace a standard or L-Platter Vertical Scan Win-
dow.
Standard Vertical Scan Window Removal
1. Lift up on the vertical bezel as shown in Figure 3-3a and tilt its top
up and away from the scanner as shown in Figure 3-3b.

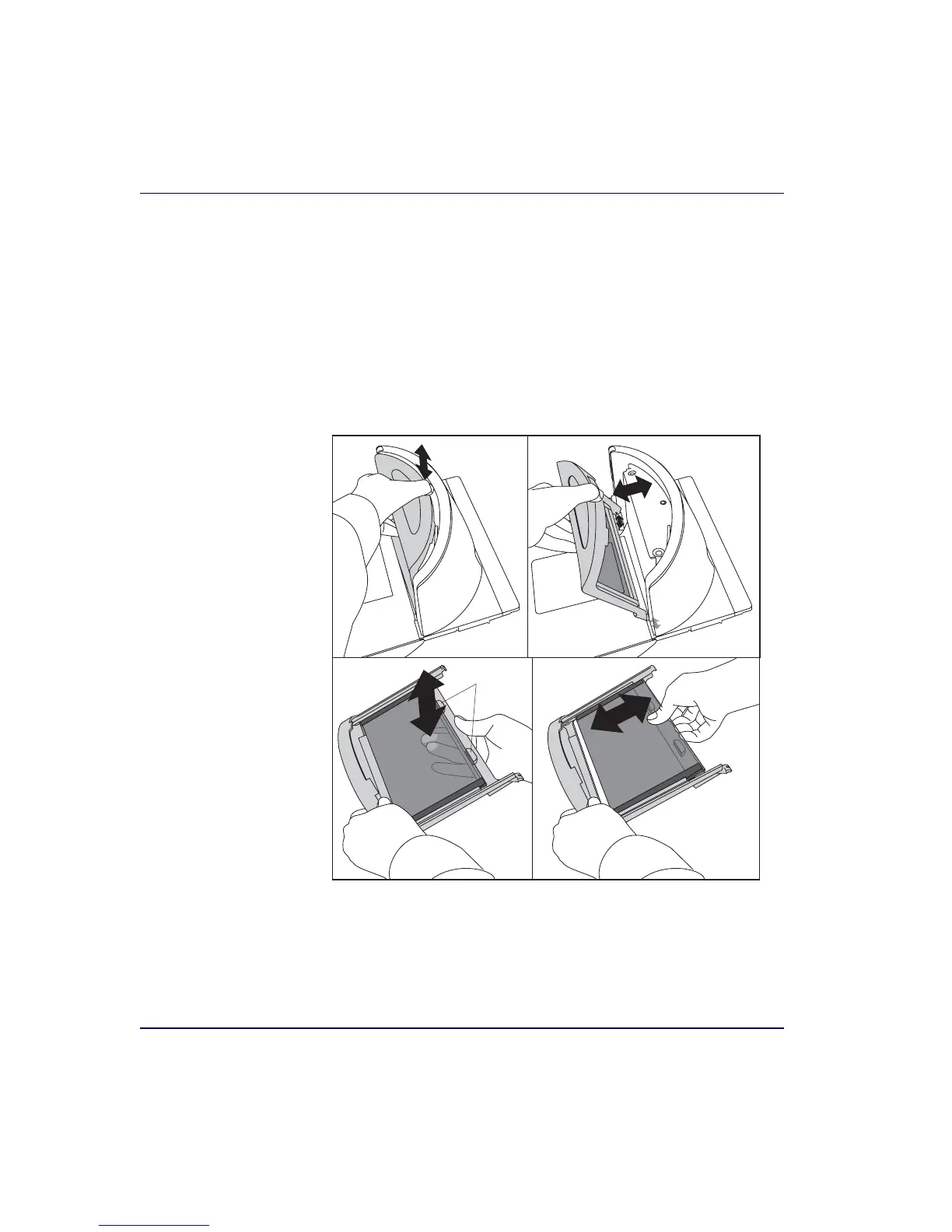

Figure 3-3. Removing/Reinstalling the Vertical Bezel
2. Press from the opposite side to release the edge of the Vertical Scan
Window from the two retention tabs shown in Figure 3-3c.
3. Slide the window from the bezel as shown in Figure 3-3d. Care-
fully dispose of any damaged glass.
ab
cd
Retention
Tab s

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
