Datalogic MAGELLAN 8300 Product Reference Guide

2-38 Magellan
®
8300/8400
Adaptive Scale Platter Option
Some Platters have been shipped with installed spacers on their undersides
at all four corners. These specially-configured Platters are provided for
customers wishing to add an adaptive scale to their unit at a later date.
Until such time as the adaptive scale is installed, the four spacers should be
left in place to ensure that the Platter rests evenly at its correct height
when positioned on the scanner.
To remove the spacers, loosen and remove the single screw for each as
shown in Figure 2-29.

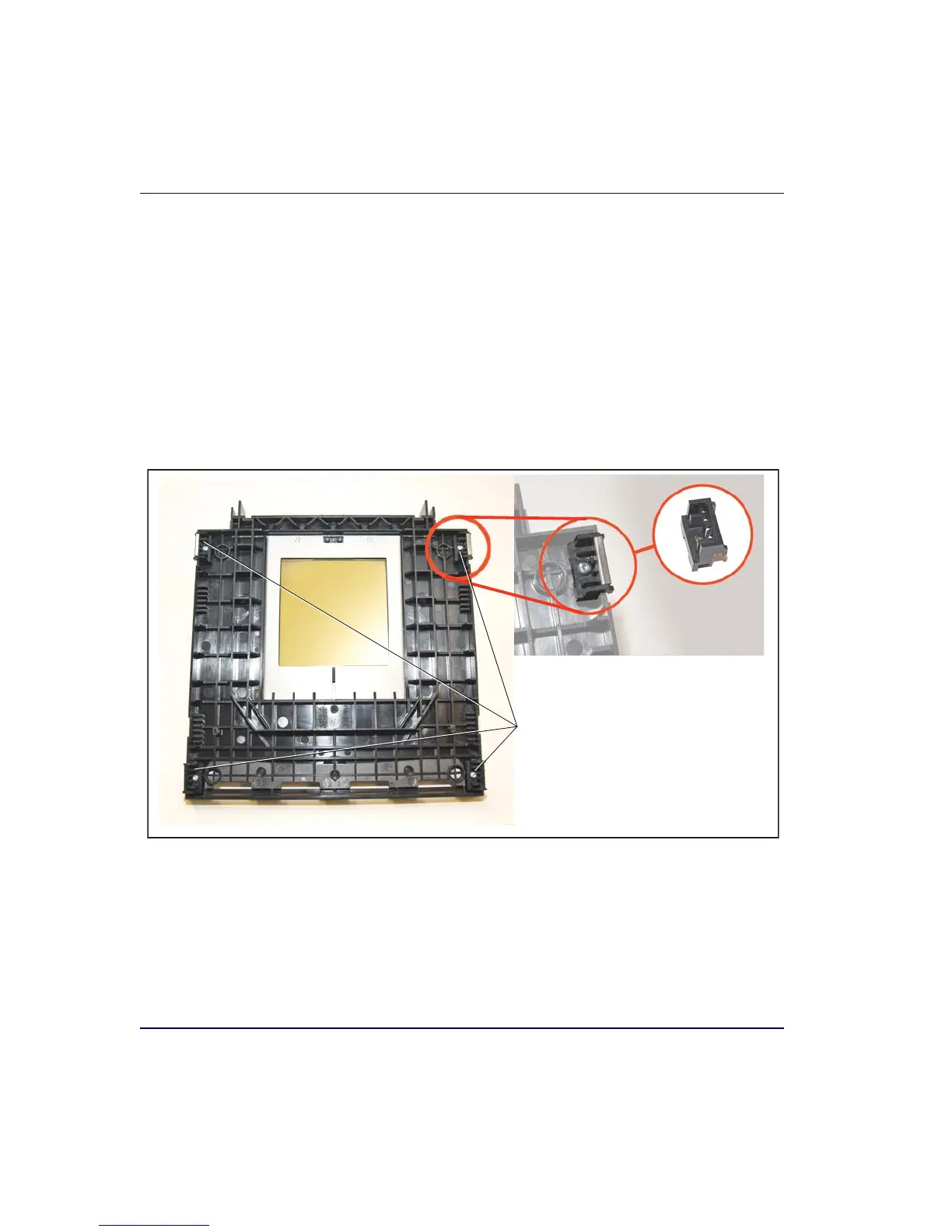

Figure 2-29. Removing the Adaptive Scale Spacers
Spacer
Platter configured for
Adaptive Scale

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
