Datalogic MAGELLAN 8300

Remote Scale Display Placement/Installation
Product Reference Guide 2-33

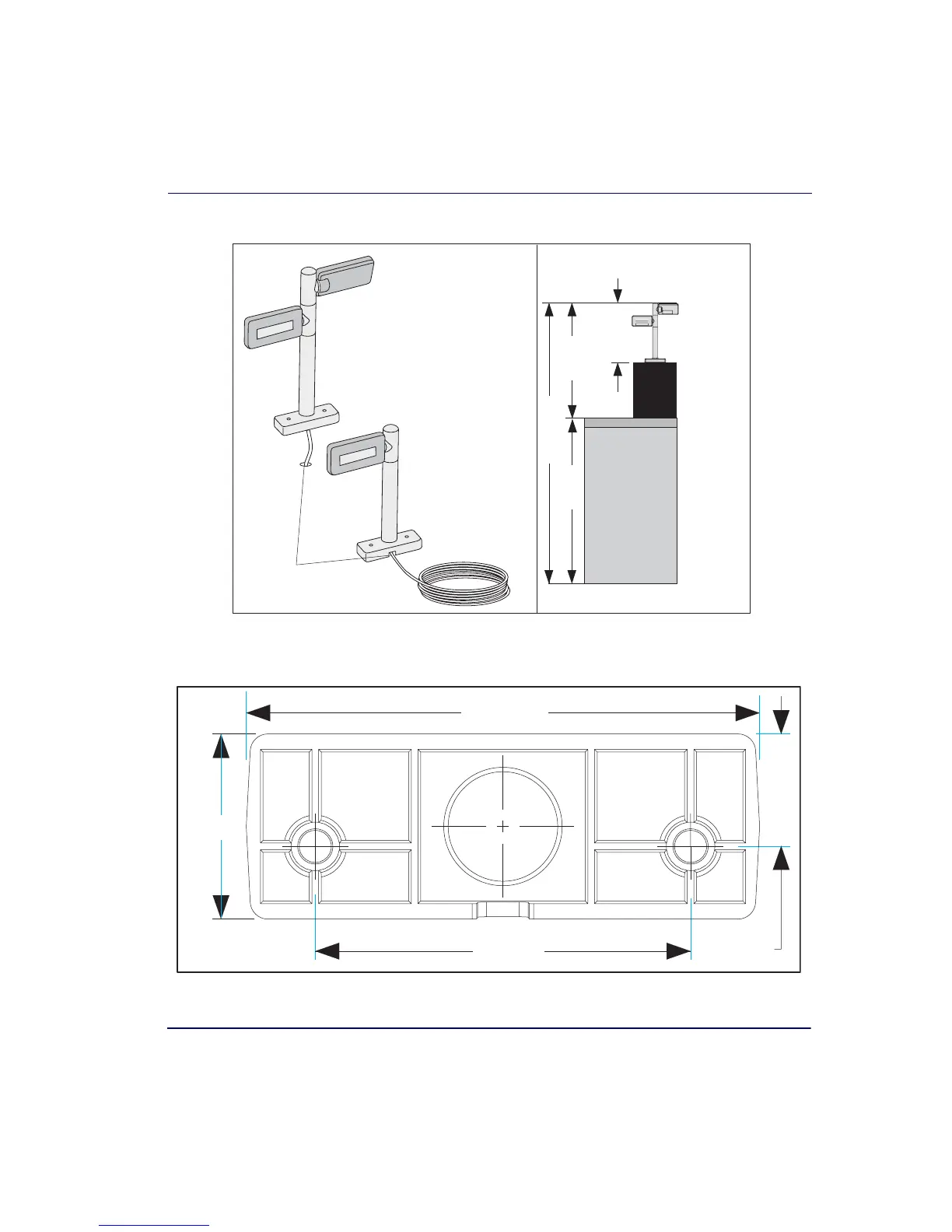

Figure 2-24. Remote Scale Display Mounting
Figure 2-25. Remote Scale Display Mounting Template
48 - 60"
(122 - 152cm)
36"
(91cm)
11.5"
(29cm)
24"
(61cm)
Mounting
Example
(optional
cable
routing)
Dual Display
Heads
Single
Display
Head
25.5mm
85.1mm
116.39mm
41.99mm
