Data Matrix 0.38 mm (15 mils)
CONDITIONS:
Hardware Settings
Code Symbology
Data Matrix ECC 200
Code Resolution
0.38 mm (15 mils)
Tilt Angle
45°
Skew Angle
15°
Focusing Distance (mm)
355
Software Parameters
Illuminator Lighting
Very High Power Strobed
434-xxx Narrow Red
Exposure Time (µs)
250
Gain
6
Reading Distance

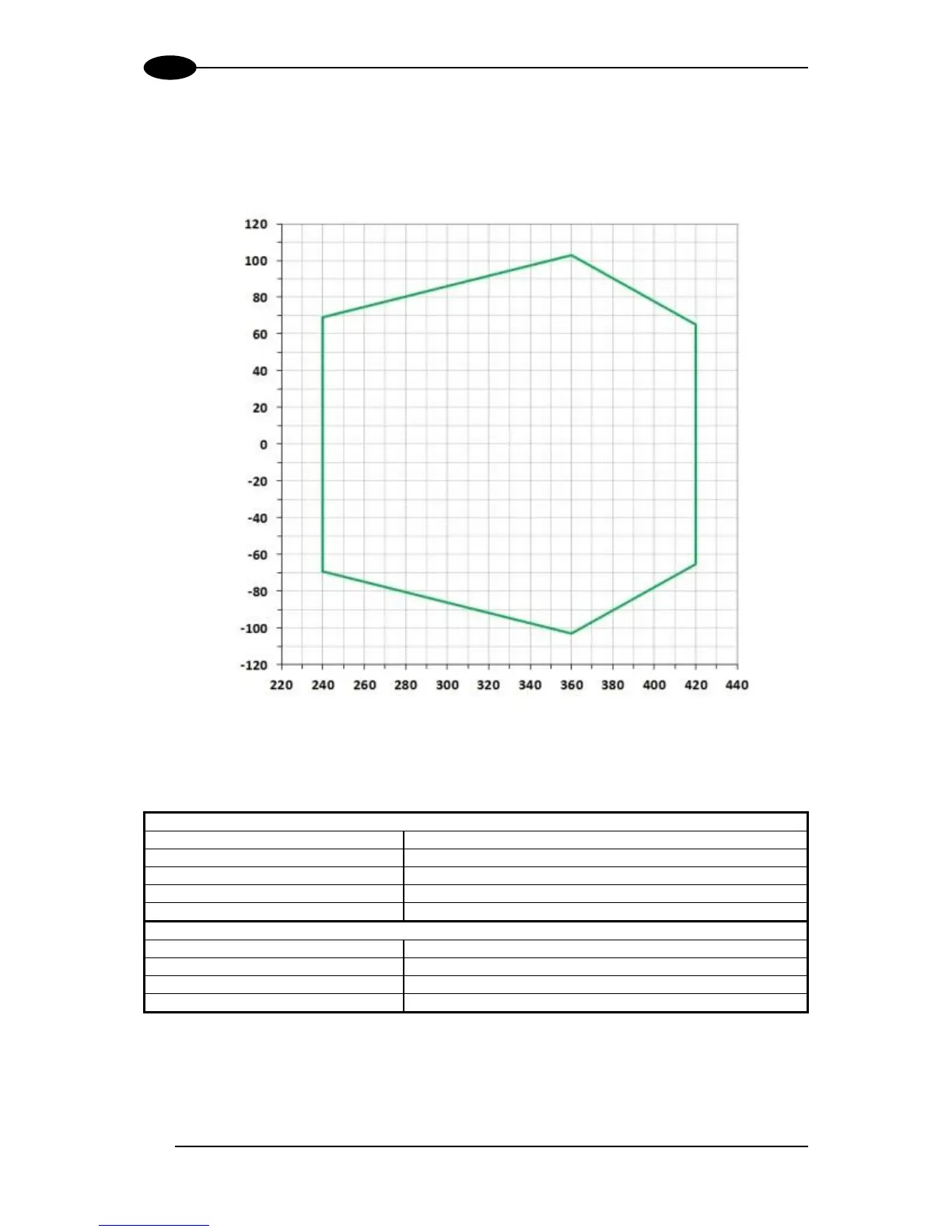

Horizontal Reading Width
in
9 10 11 12 13 14 15 16 17
0
1
2
-1
-2
3
-3
mm
4
-4
