MATRIX 300N™ REFERENCE MANUAL
4.4 AUXILIARY RS232 INTERFACE
The RS232 auxiliary interface is available for Point-to-Point connections. When it is
connected to the host computer it allows transmission of code data.
The parameters relative to the aux interface (baud rate, data bits, etc.) can be defined
through the Reading Phase step (Channels) in DL.CODE.
The 9-pin female Auxiliary Interface connector inside the CBX is the preferred connector for
temporary communication monitoring.

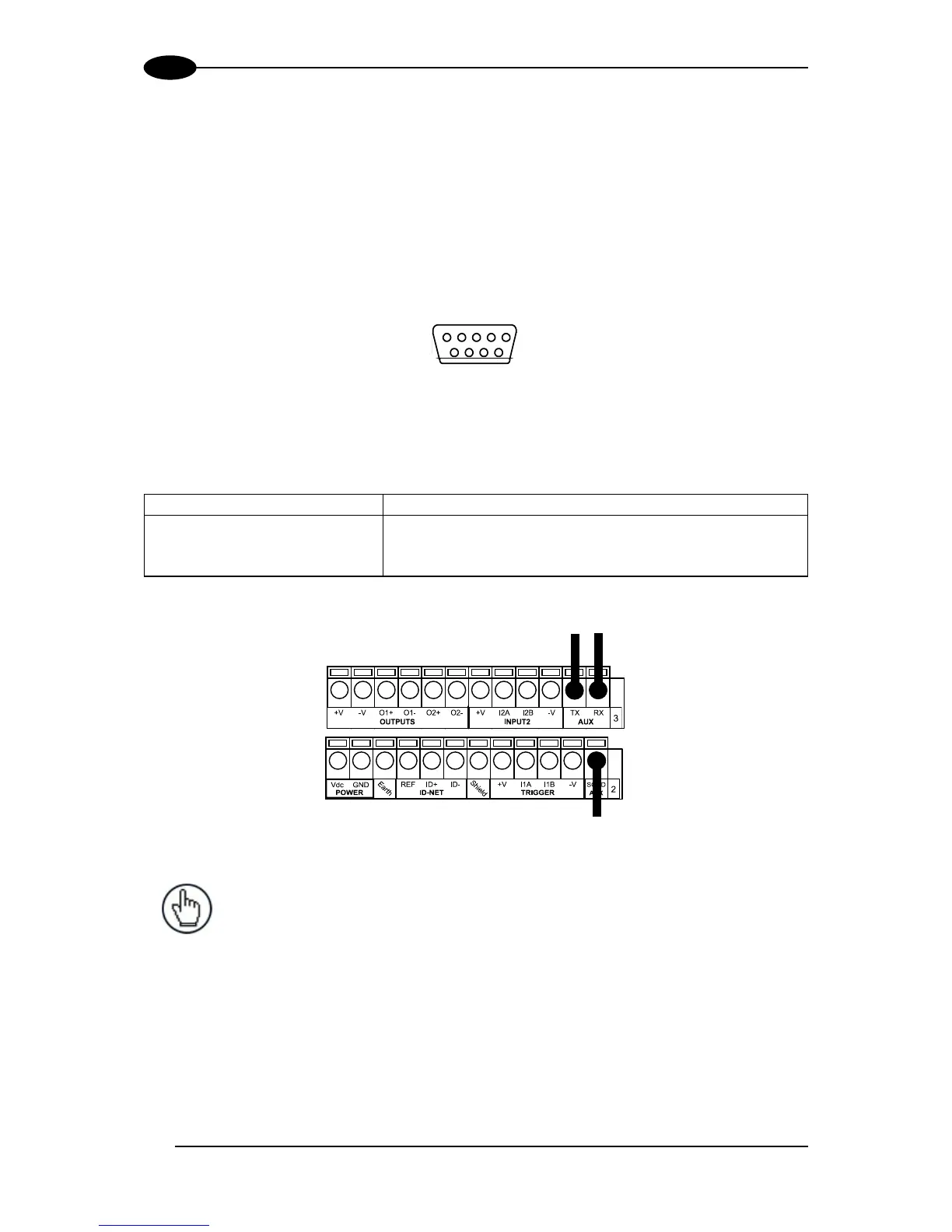

Figure 43 - 9-pin female connector
If permanent system wiring is required, the following pins are used to connect the RS232
auxiliary interface:
Auxiliary Interface Receive Data
Auxiliary Interface Transmit Data
Auxiliary Interface Reference
Figure 44 - RS232 Auxiliary Interface Connections
NOTE: Do not connect the Aux Interface to the CBX spring clamp
connectors and the 9-pin connector simultaneously.
