Datalogic Matrix 300N Reference Manual

RAPID CONFIGURATION
3
1
STEP 2 – MOUNT AND POSITION THE READER
1. To mount the Matrix 300N, use the mounting brackets to obtain the most suitable position
for the reader. The most common mounting configuration is shown in the figure below.

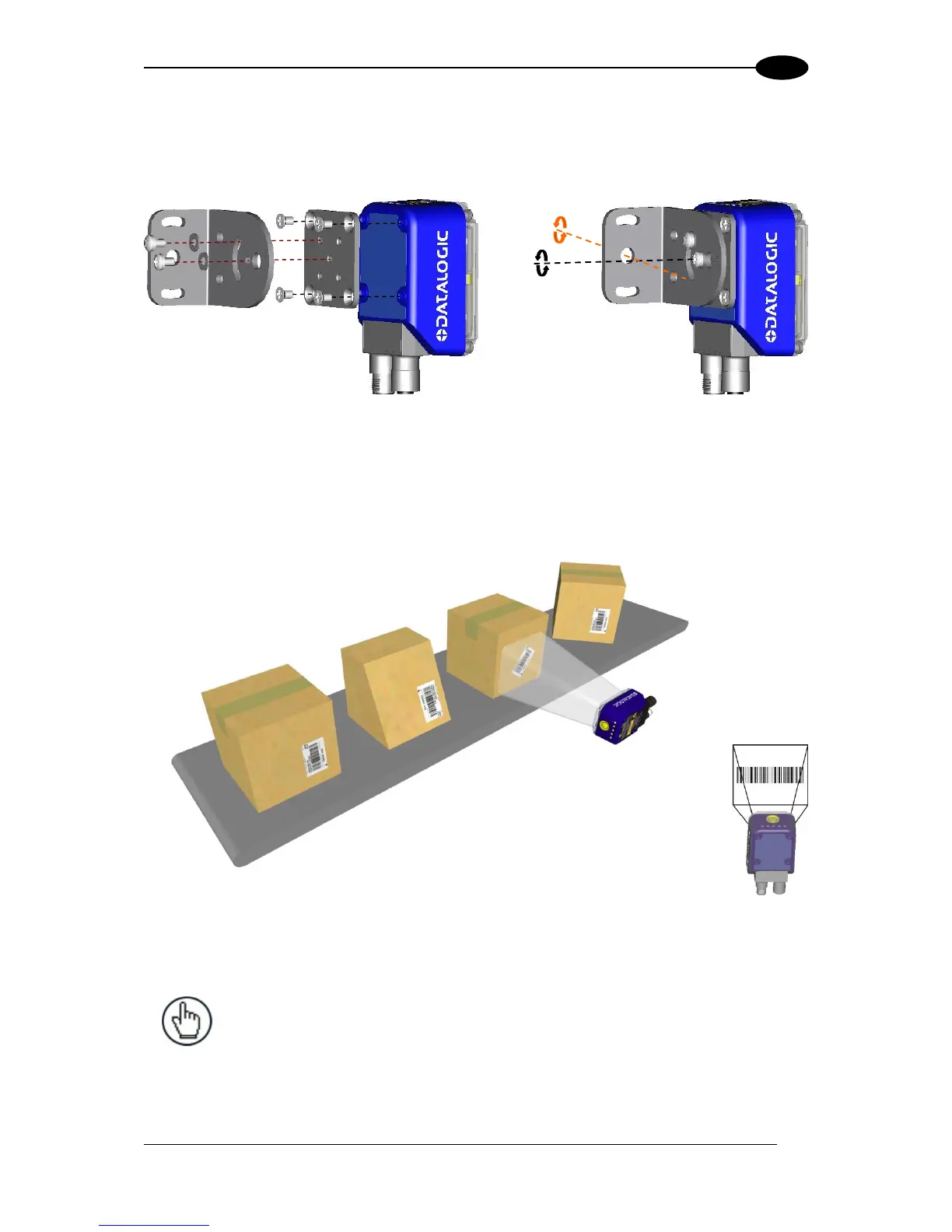

Figure 2 –Positioning with Mounting Bracket
2. When mounting the Matrix 300N take into consideration these three ideal label position
angles: Pitch or Skew 10° to 20° and Tilt 0°, although the reader can read a code at any tilt
angle provided the code fits into the Field Of View (FOV).
Figure 3 – Pitch, Tilt and Skew Angles
3. Refer to the reading diagrams in chp. 6 to determine the distance your reader should be
positioned at.
NOTE: Rapid Configuration of the Matrix 300N reader can be made either
through the X-PRESS™ interface (steps 3-4) which requires no PC
connection, or by using the DL.CODE Setup Wizard (steps 5-6). Select the
procedure according to your needs.
Tilt
Skew
Pitch
Minimize
No Pitch, Tilt or Skew
Tilt
any angle
inside FOV
Skew
Assure at least 10°
FOV
H
FOV
V

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
