CBX ELECTRICAL CONNECTIONS
65
4
4.2.1 RS232 Interface
The RS232 interface is generally used for Point-to-Point connections. When it is connected
to the host computer it allows transmission of code data.
The following pins are used for RS232 interface connection:
CBX100/500
Function
TX
Transmit Data
RX
Receive Data
SGND
Signal Ground
It is always advisable to use shielded cables. The overall maximum cable length must be
less than 15 m (49.2 ft).
SGND RXD TXD
USER INTERFACE
SGND TX RX
READER

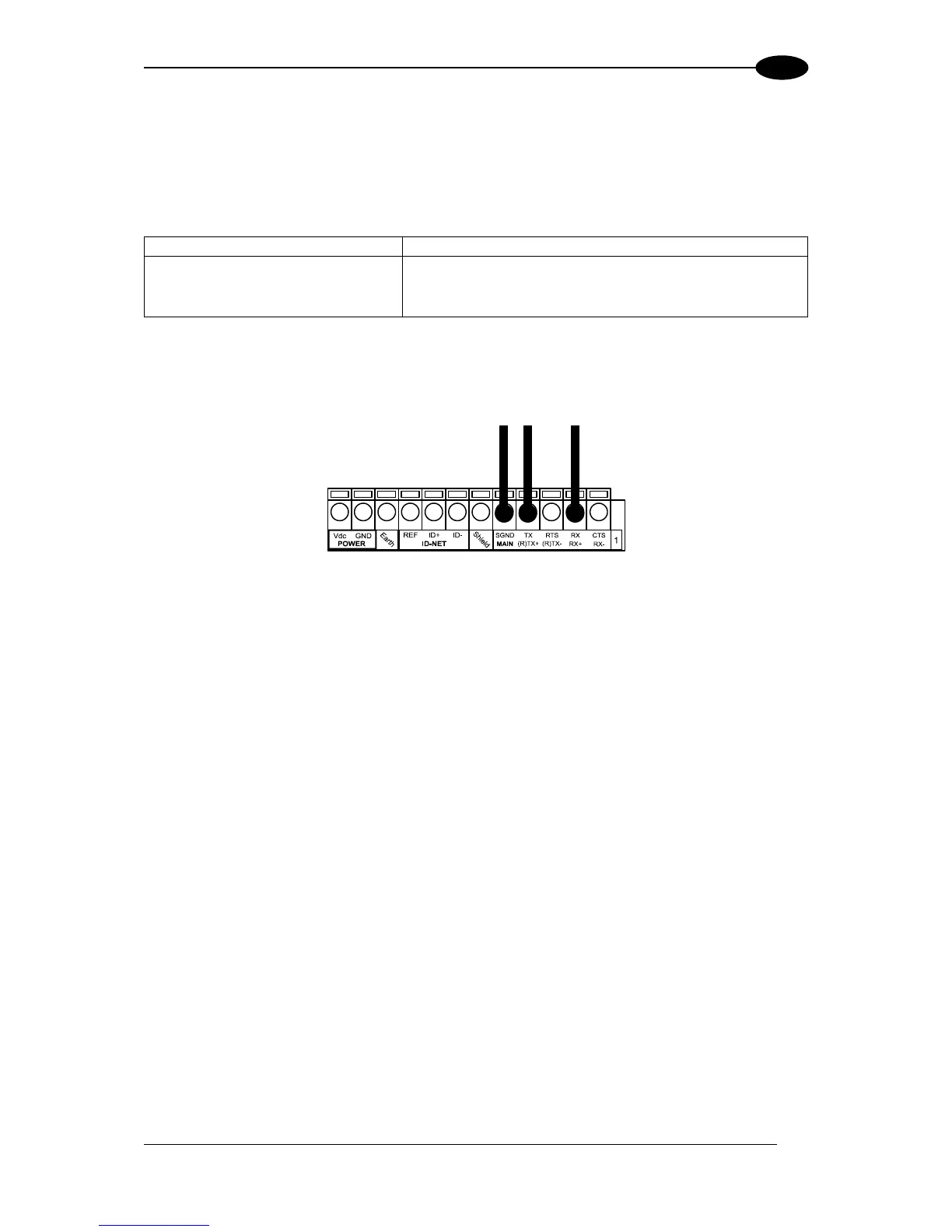

Figure 36 – RS232 Main Interface Connections
