2.3.4 Verify Master/Slave Setup

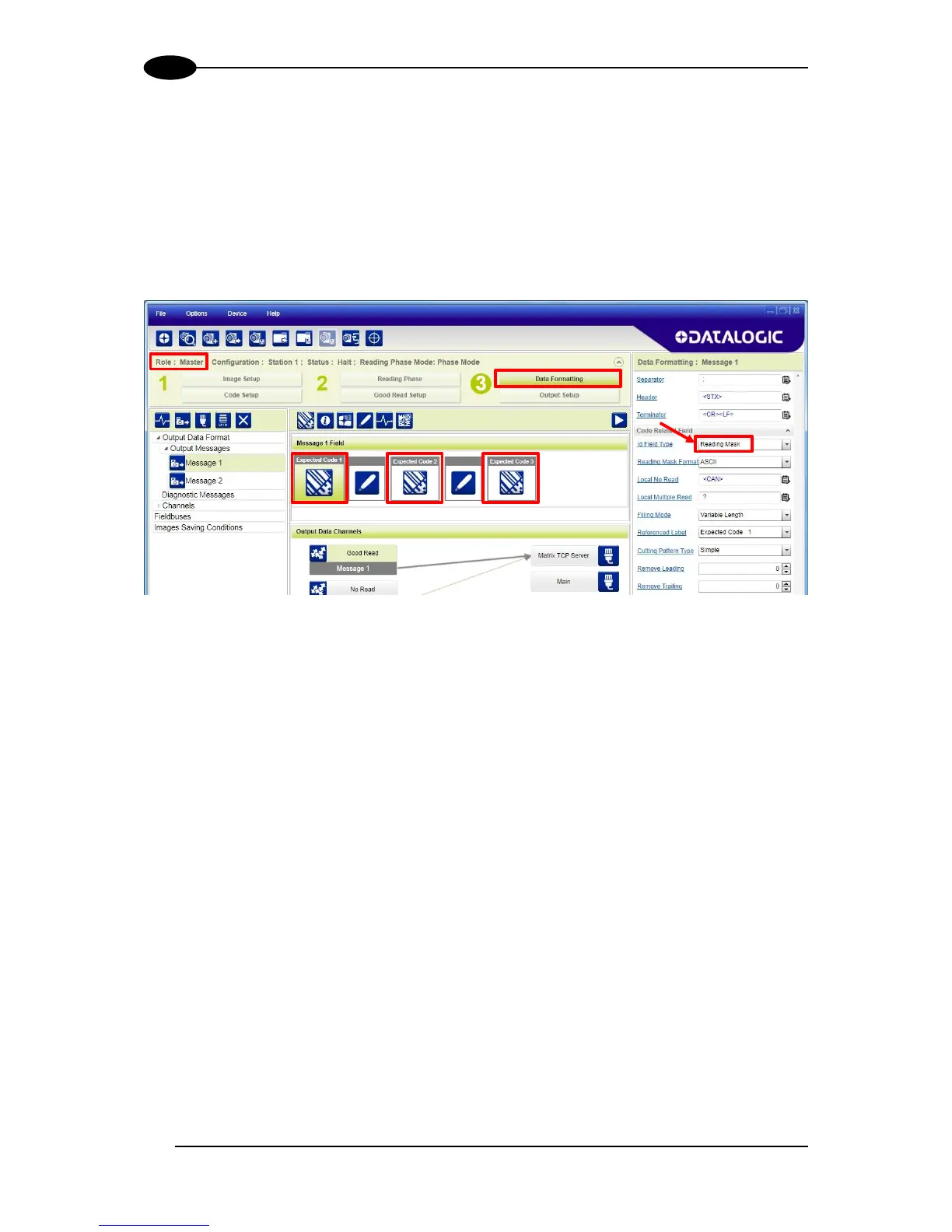

From the Master Station 1 configuration, run the application and monitor the output data from
the DL.CODE Console or a configured channel terminal.
You can also temporarily apply the Reading Mask field in place of each Code Content field
to verify if all devices are reading. To do this:
a) from the Master, change each Expected Code field from Code Content to Reading
Mask.
b) Save on device overwriting Station 1 with Clone Master Configuration on
Slaves DISABLED!

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
