INTRODUCTION
43
2
Run the application and monitor the output data from the DL.CODE Console or a configured
channel terminal.
The Reading Mask shows which device reads which Expected Code. The mask is composed
of a fixed 32-character string (0=No Read or 1=Read) representing the 32 possible readers
in an ID-NET network. The Master is the last character in the string (first character to the
right). The Slaves are shown in order from right to left (1 to 31).
Example: Master + Slave 2 = 00000000000000000000000000000101
After verifying correct functioning of the reading devices, return the Expected Code fields
from Reading Mask to Code Content and Save on device overwriting Station 1 with Clone
Master Configuration on Slaves DISABLED! again.

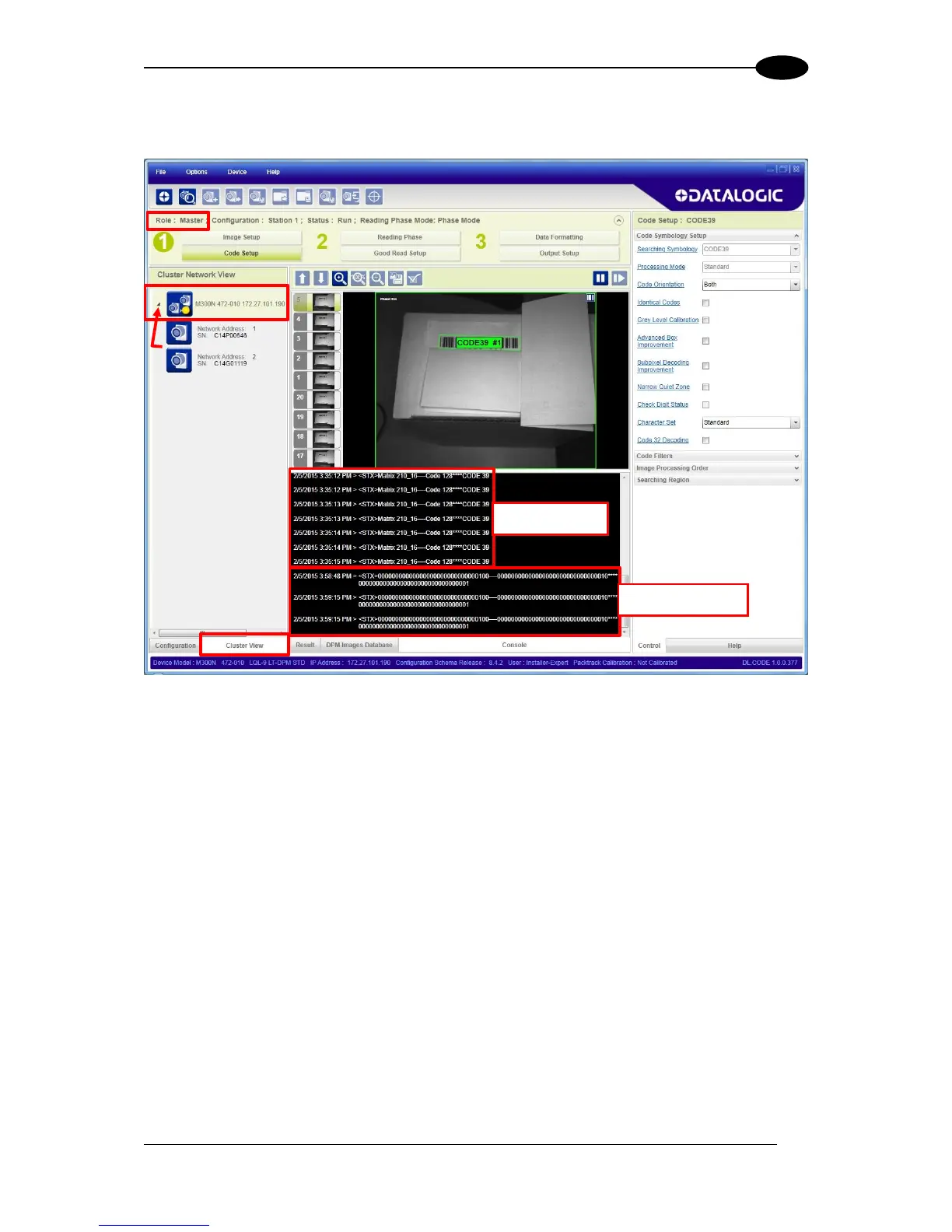

To view the connected Slaves configurations, click on the Cluster View tab at the bottom of
the screen and open the Master branch. Select any slave and then click The Configuration
tab at the bottom of the screen. By selecting the various configuration steps above you can
visualize the slave configuration.
Reading Mask
Output Data
