Datalogic Matrix 300N Reference Manual

RAPID CONFIGURATION
11
1

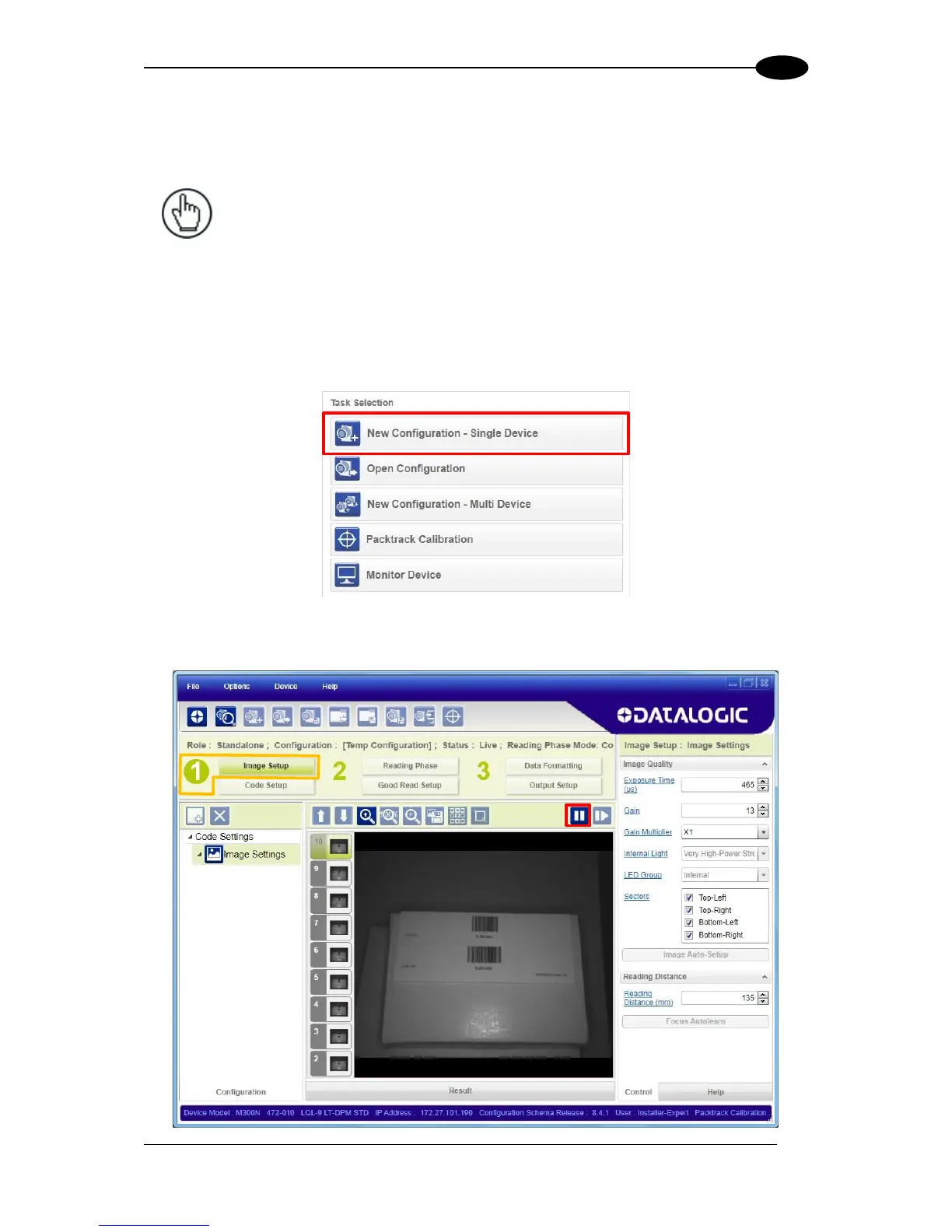

STEP 6 – DEVICE CONFIGURATION
Image Setup for Software Adjustable Focus Models (Liquid Lens)
NOTE: For Manual Adjustable Focus models go to page 16 then continue
with Code Setup on page 21.
To begin configuration, the reader must be correctly mounted at the correct reading distance
for your application so that its Field of View covers the application reading area.
1. From the Task Area select New Configuration – Single Device. The device enters run
mode and begins acquiring images.
2. Place the Grade A Barcode Test Chart in the reading area. Once positioned, stop
image acquisition by clicking on the Pause button.

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
