Datalogic Matrix 300N Reference Manual

INTRODUCTION
49
2
Learn
Once entered, the imager starts a procedure to automatically detect and recognize a single
code which is presented to it. Successive Learns will substitute the current code.
The Learn LED will blink until the procedure is completed.
The Learn procedure ends when the Image Processing and Decoding parameters are
successfully saved in the reader memory, the Green Spot is activated, the Learn LED will stop
blinking and Matrix 300N emits 3 high pitched beeps.
If the autolearning cannot be reached after a timeout of about 3 (three) minutes, Matrix 300N
will exit without saving the parameters to memory, the Learn LED will stop blinking and in this
case Matrix 300N emits a long low pitched beep.
You can exit the Learn function at any time by pressing the X-PRESS push button once.
After a short delay the Learn procedure is cancelled.

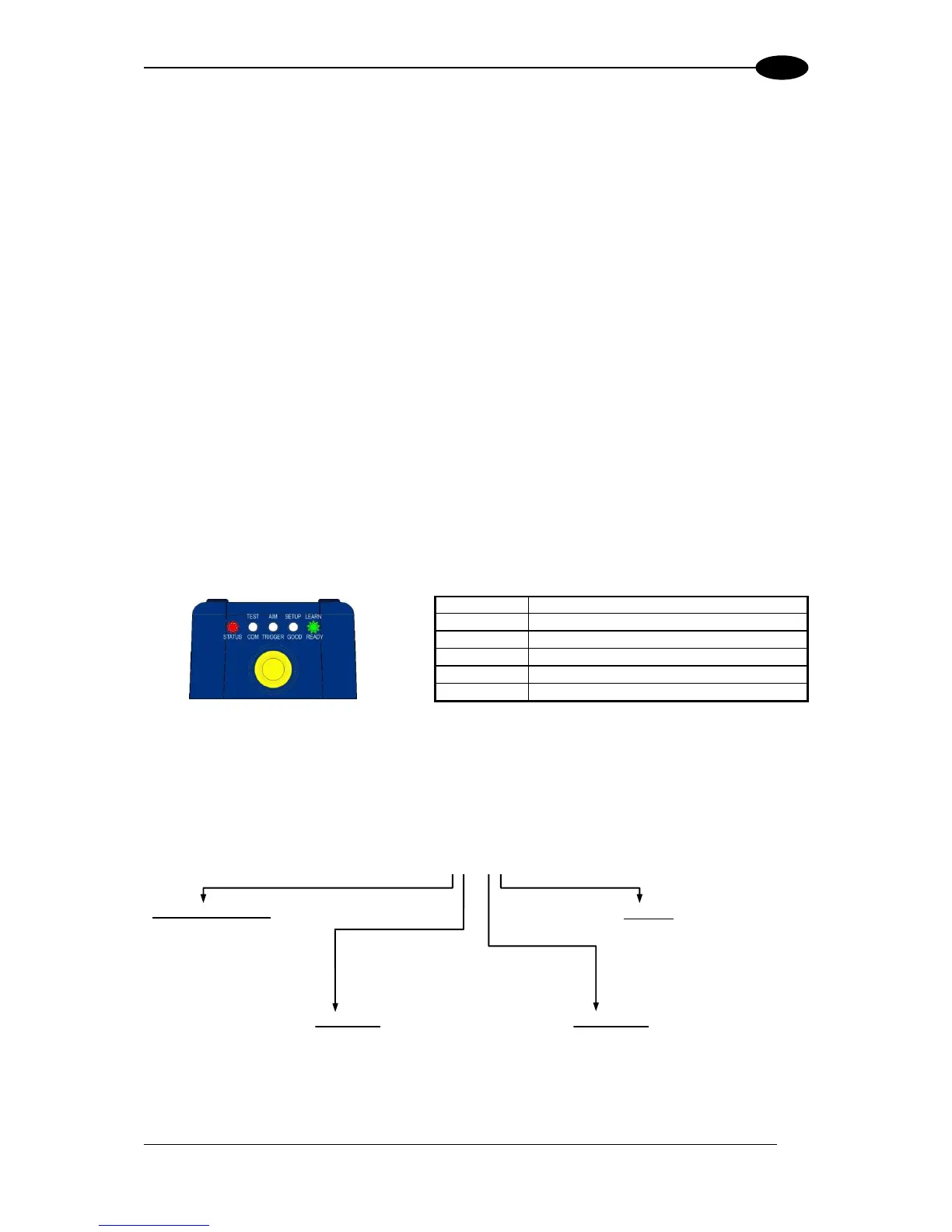

2.5.2 Diagnostic Indication
The “STATUS” and “READY” LEDs blink simultaneously to signal the presence of an error.
Diagnostic message transmission on interfaces can be enabled to provide details about
specific error conditions. See the Diagnostic Error Conditions chart in the Diagnostic page of
the DL.CODE Monitor.
LED
STATUS
READY
BLINK
GOOD
TRIGGER
COM
STATUS
BLINK
2.6 MODEL DESCRIPTION
Matrix 300N readers are described by their model number which indicates the characteristics
listed in the diagram below. Not all combinations are available. For a complete list of
combinations see the Models tab on the Product page of the website.
Internal Illuminator
1 = Wide Angle Red
2 = Medium Angle Red
3 = Narrow Angle Red
5 = Wide Angle White
6 = Narrow Angle White
7 = Light DPM
8 = Multi-Light DPM
Input Power
1 = Standard 10 - 30 Vdc
4 = PoE 48 Vdc
Options
0 = Standard
1 = ESD Safe
2 = ESD Safe + YAG Cut Filter
Lens Type
1 = 6 mm manual focus
2 = 9 mm software focus (liquid lens)
3 = 9 mm manual focus
4 = 12 mm manual focus
5 = 16 mm manual focus
MATRIX 300N 4XX-0XX

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
