Datalogic Matrix 300N Reference Manual

INTRODUCTION
31
2
Industrial Strength
 Industrial compact 2D reader
 Rugged metal construction
 Sealed circular M12 connectors
 IP67 protection class
 50 °C max operating temperature
 Supply voltage ranges from 10 to 30 Vdc
The reader is particularly suitable for industrial environments where protection against harsh
external conditions is required.
The reader is contained in an aluminum housing; with its internal illuminator, lens and
protective cover, the mechanical dimensions are 95 x 54 x 43 mm and it weighs about 238 g.
Electrical connection of Power, Host interfaces and I/O signals is provided through an M12
(IP67) 17-pin connector (Figure A, 8). A standard M12 D-Coded (IP67) Ethernet connector is
also present (Figure A, 9).

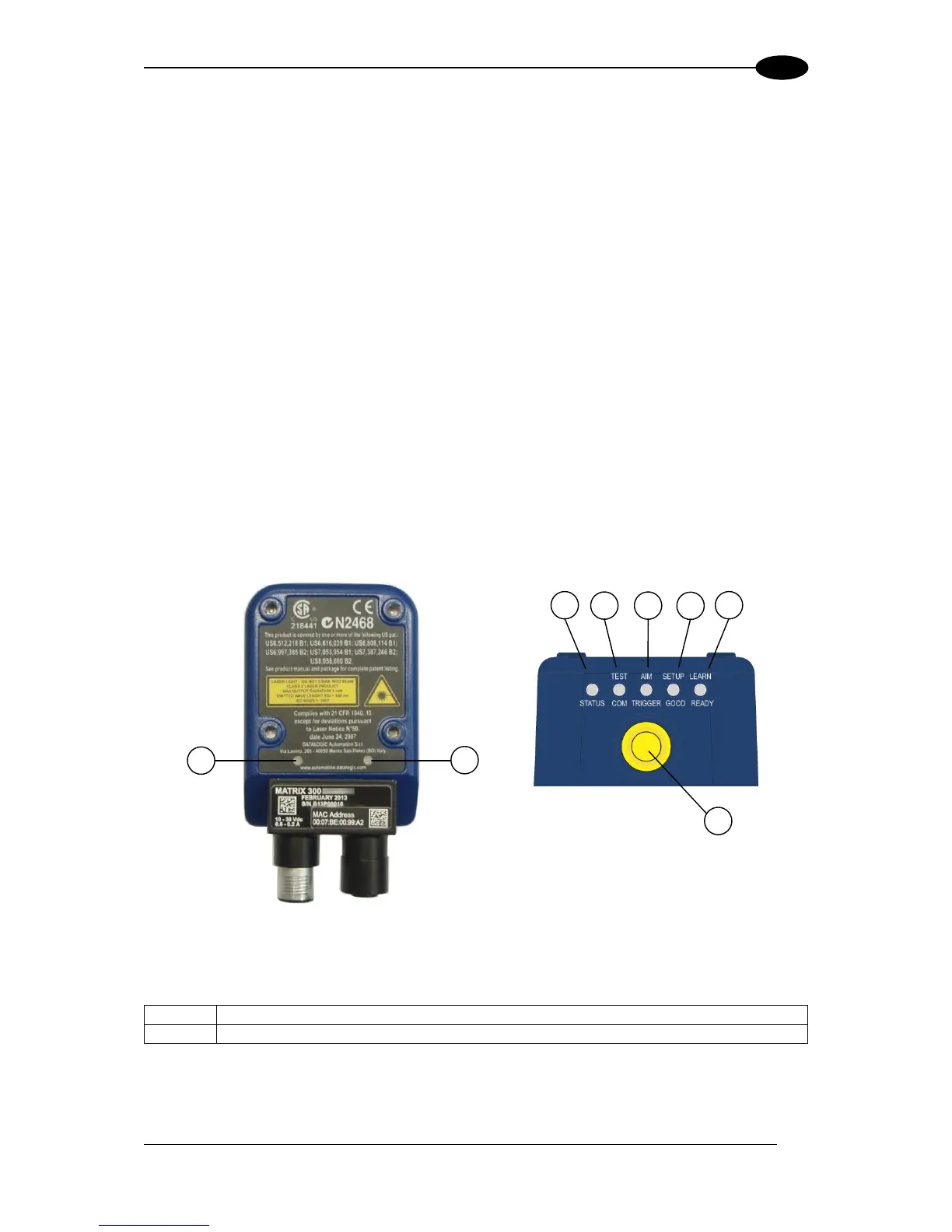

2.2 INDICATORS AND KEYPAD BUTTON
Figure 13 - Indicators
The following LED indicators are located on the reader:
PWR
blue LED indicates that the reader is connected to the power supply (Figure 13, 1)
NET
yellow LED indicates connection to the on-board Ethernet network (Figure 13, 2)
3
8
4
5
6
7
1
2

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
