Data Matrix 0.25 mm (10 mils)
CONDITIONS:
Hardware Settings
Code Symbology
Data Matrix ECC 200
Code Resolution
0.25 mm (10 mils)
Tilt Angle
45°
Skew Angle
15°
Focusing Distance (mm)
340
Software Parameters
Illuminator Lighting
Very High Power Strobed
435-xxx Narrow Red
Exposure Time (µs)
270
Gain
8
465-xxx Narrow White
Exposure Time (µs)
270
Gain
8

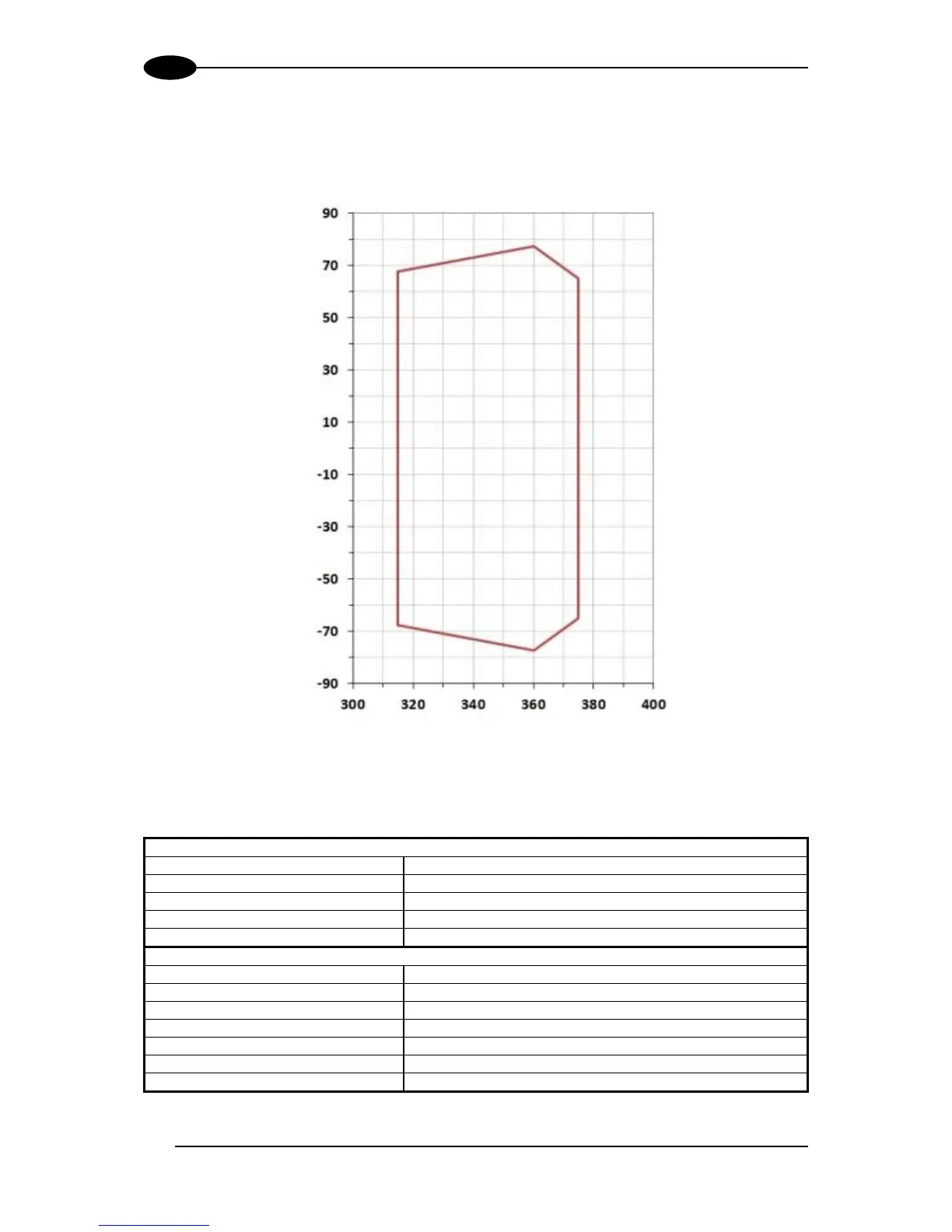

Reading Distance
Horizontal Reading Width
in
12 13 14 15 16
0
1
2
-1
-2
3
-3
mm
