ALTERNATIVE CONNECTIONS
157
A

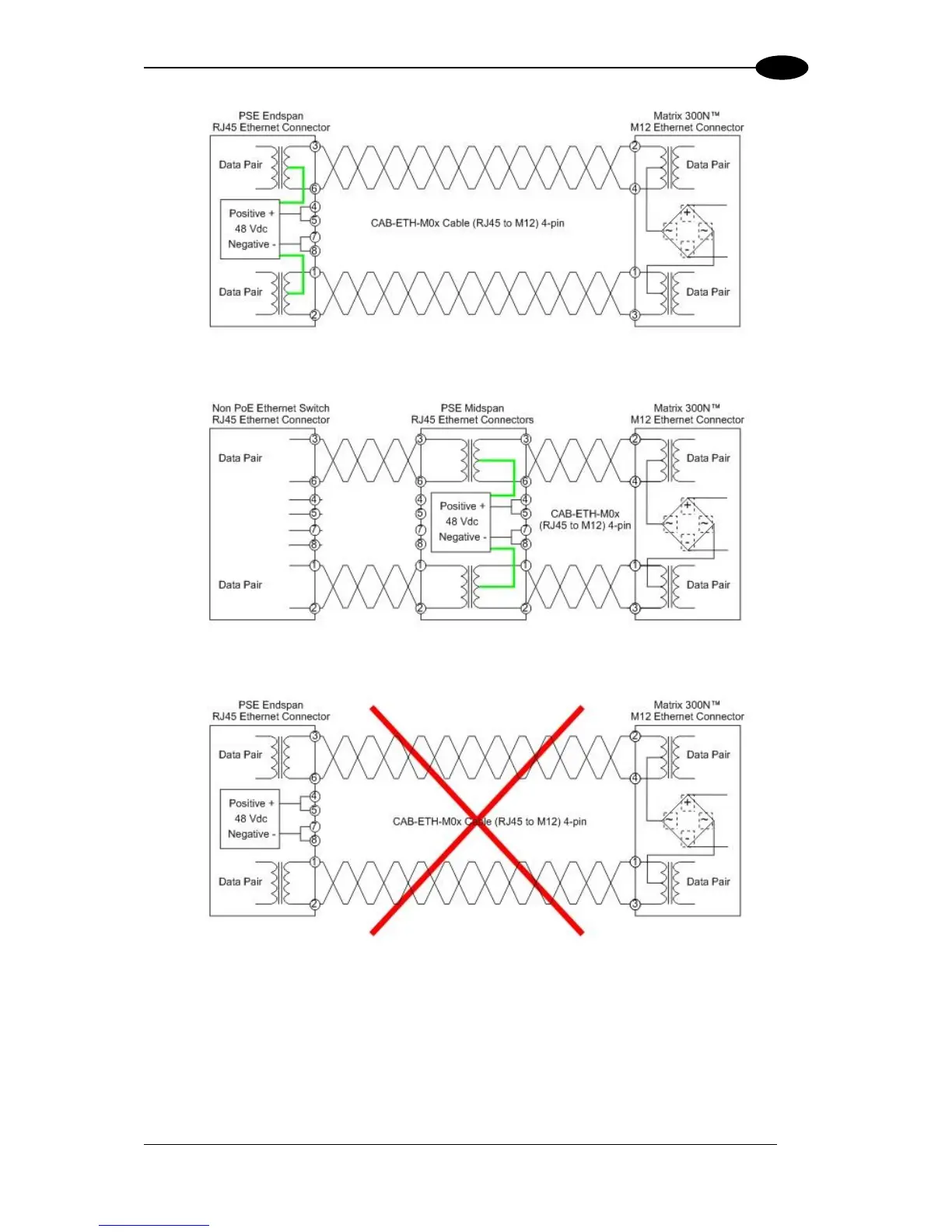

Figure 81 – Matrix 300N PoE PSE Endspan Alternative A Connections OK
Figure 82 – Matrix 300N PoE PSE Midspan Alternative A Connections OK
Figure 83 – Matrix 300N PoE PSE Endspan Alternative B Connections NOT SUPPORTED
