MATRIX 300N™ REFERENCE MANUAL
160
A
CAUTION: For NPN output connections, the external interface voltage (Vext)
must not exceed the Matrix 300N power supply source voltage (Vdc) otherwise
correct output functioning cannot be guaranteed.
Matrix 300N™
USER INTERFACE
9/8/16
2
Vdc

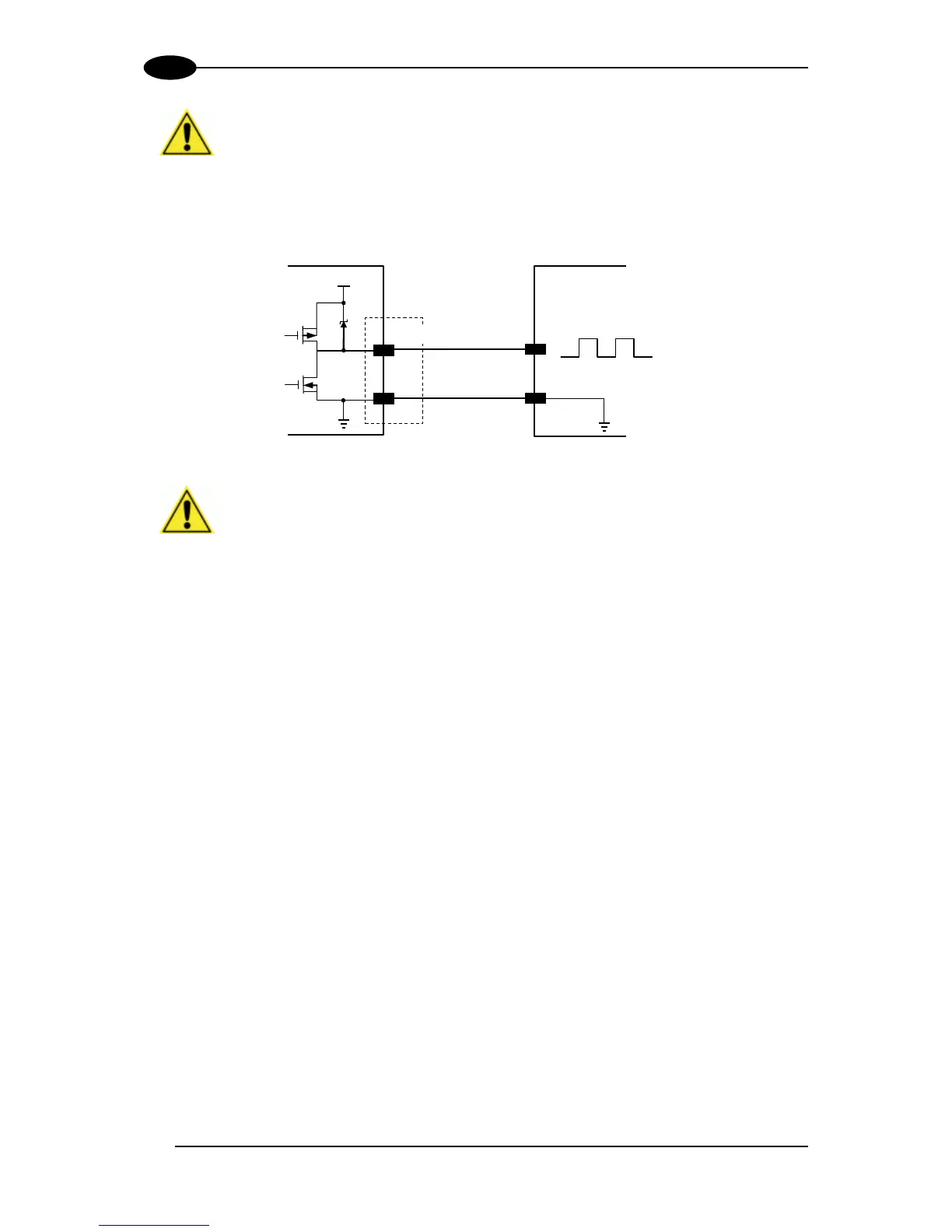

Figure 87 - Push-Pull Output Connection
CAUTION: For Matrix 300N PoE models, the internal Digital Output circuitry
is not powered and supply power is not available to any Input/Output devices
(Vdc=0). Only input device signals can be accepted directly on the M12
17-pin connector without power.
For these models, if it is necessary to use Input/Output devices, we recommend
connecting them through the CBX, which must be powered separately.

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
