RAPID CONFIGURATION
9
1
The discovery feature will also show devices not belonging to the LAN and display them in
grey (see Figure 8).
3. First the device must be added to the LAN by aligning its IP Address to the network. The
network administrator should provide valid LAN address(es).
4. Click on the device wrench icon (or the Device>Settings>Settings menu) to open the
Device Environment Configuration window.
5. Change the Ethernet Settings (IP Address, Subnet Mask, Gateway Address etc.)
according to the network requirements.

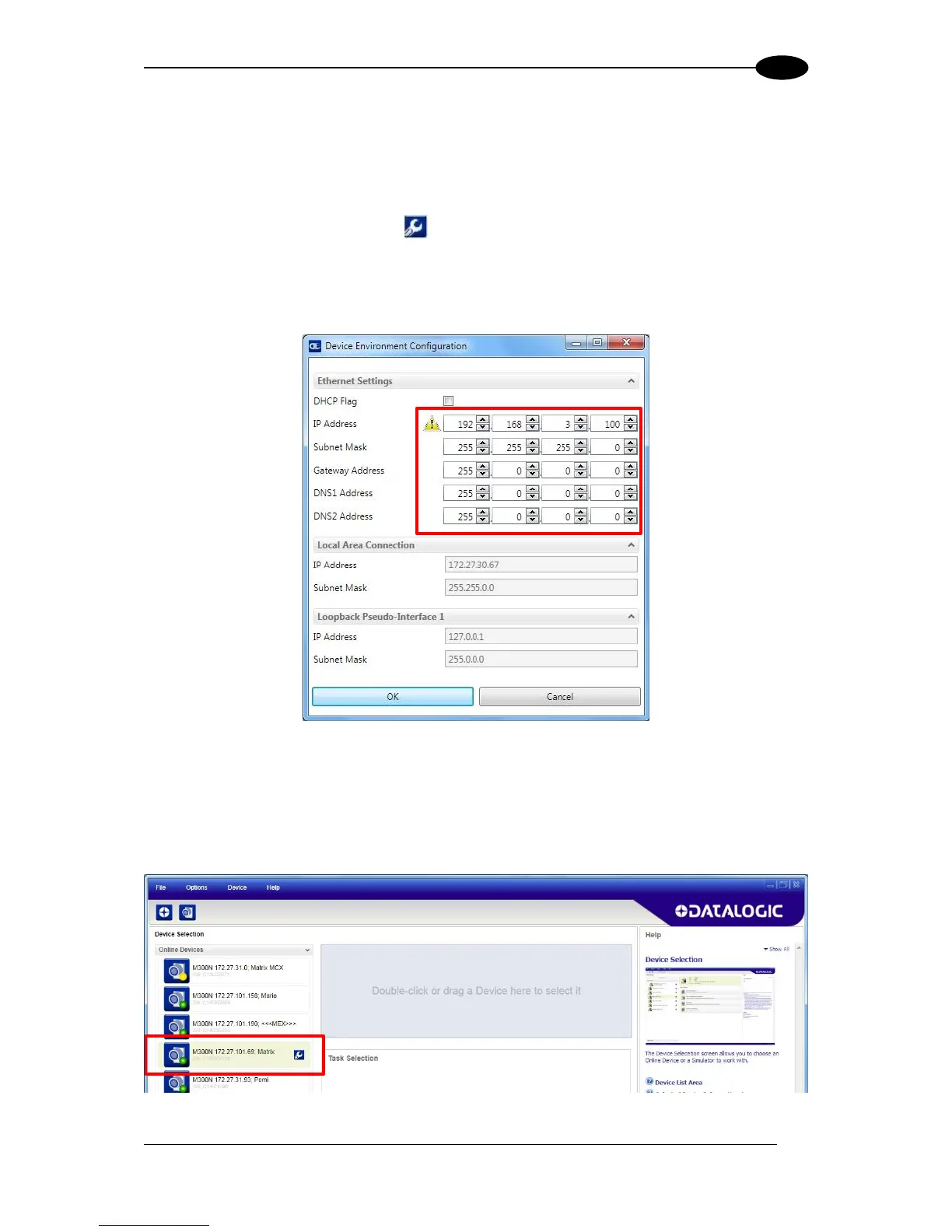

Figure 9 Device Environment Configuration Window
6. Click OK; the device will be reset.
7. Click the Discovery icon and the device will reappear in the list of Online Devices (in
color) meaning it is now part of the LAN and can be configured. The new IP address will
also be displayed.
