MATRIX 300N™ REFERENCE MANUAL
74
4

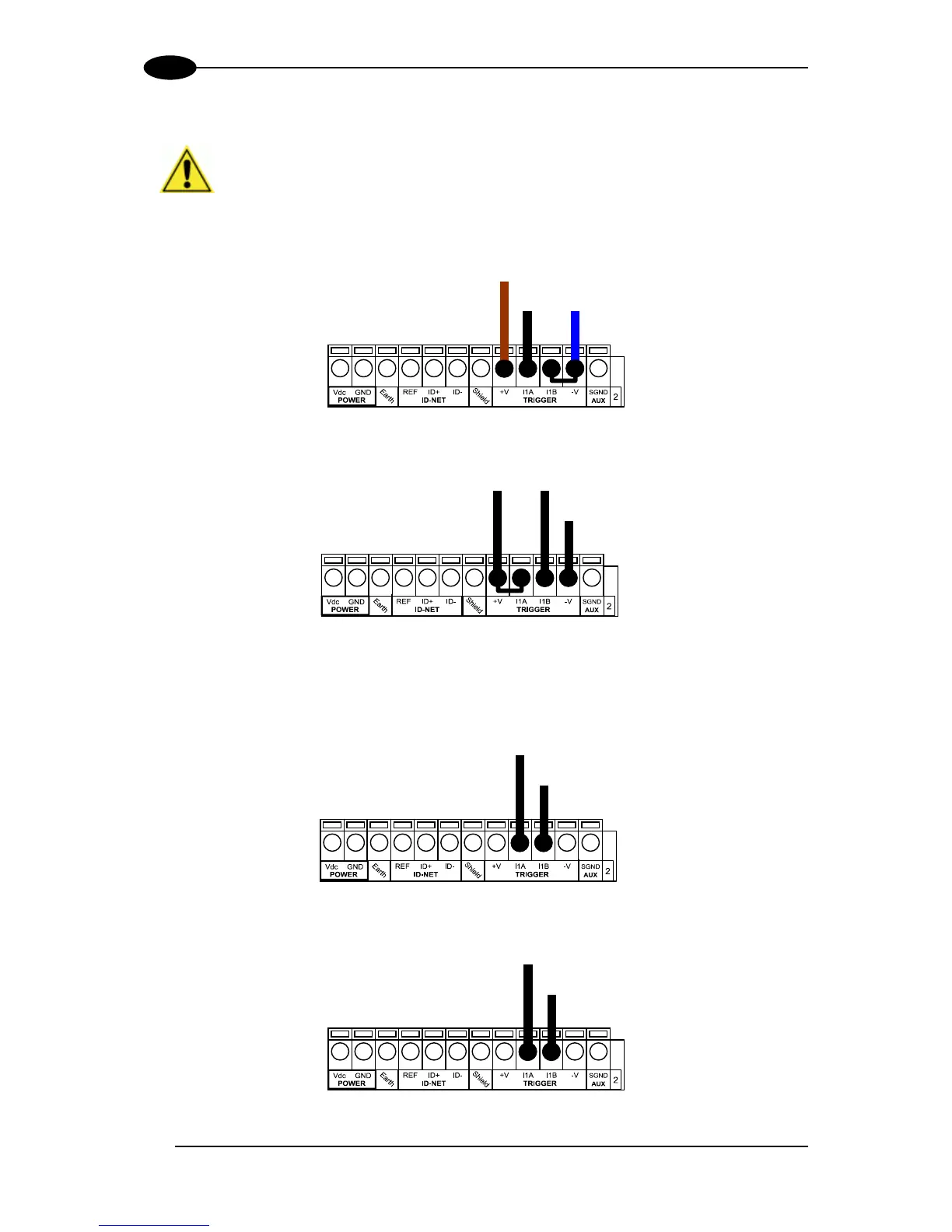

EXTERNAL TRIGGER INPUT CONNECTIONS USING MATRIX 300N POWER
CAUTION: Power from the Vdc/GND spring clamps is available directly to
the Input Device on the +V/-V spring clamps, and does not pass through the
Power Switch (ON/OFF) inside the CBX. Disconnect the power supply when
working inside the CBX.
Figure 45 – PH-1 External Trigger Using Matrix 300N Power
Figure 46 - NPN External Trigger Using Matrix 300N Power
EXTERNAL TRIGGER INPUT CONNECTIONS USING EXTERNAL POWER
Figure 47 - PNP External Trigger Using External Power
Figure 48 - NPN External Trigger Using External Power
Pulled up to External
Input Device Power
Input
Signal
NPN Photocell
Pulled down to External
Input Device Reference
Input
Signal
PNP Photocell
Power to Input
Photocell Signal
Photocell
Reference
NPN Photocell
(brown)
(black) (blue)
PH-1 Photocell (PNP)

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
