Datalogic Matrix 300N Reference Manual

CBX ELECTRICAL CONNECTIONS
79
4
Output 3 is not opto-isolated but can be assigned to the same events. By default it is not
assigned to any event. The CBX500 must be used to connect this output.
NOTE: For this output, set the Line Type configuration parameter according
to the hardware connection to the CBX: NPN, PNP or Push-Pull.

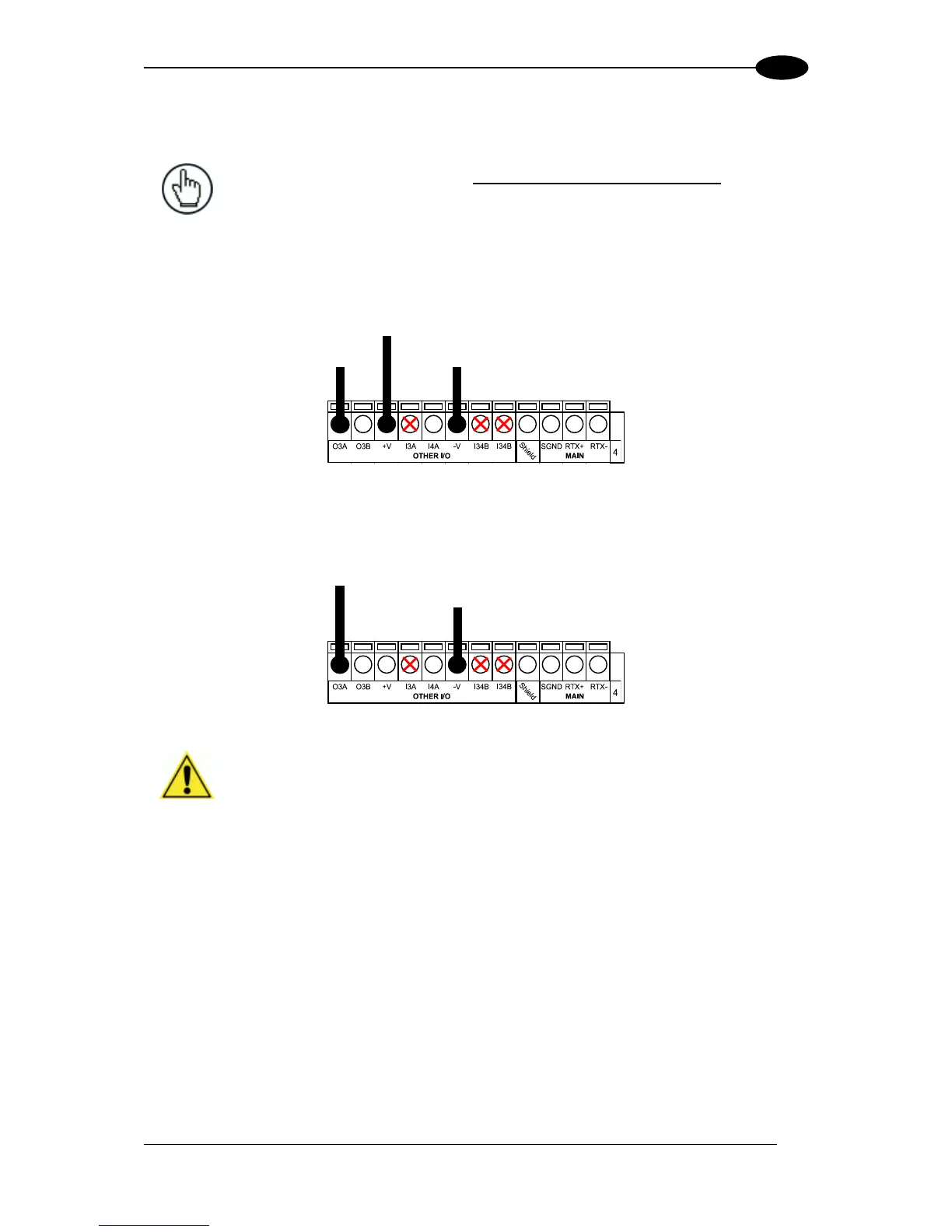

OUTPUT 3 CONNECTIONS USING MATRIX 300N POWER (CBX500 Only)
Figure 56 - Output 3 Using Matrix 300N Power
OUTPUT 3 CONNECTIONS USING EXTERNAL POWER (CBX500 Only)
Figure 57 - Output 3 Using External Power
CAUTION: Do not connect to I3A or I34B signals, they are reserved.
Output
Signal
External Device
Ground Reference
Power to
Output Device
Output Output Device
Signal Reference
Output Device

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
