MATRIX 300N™ REFERENCE MANUAL
82
5

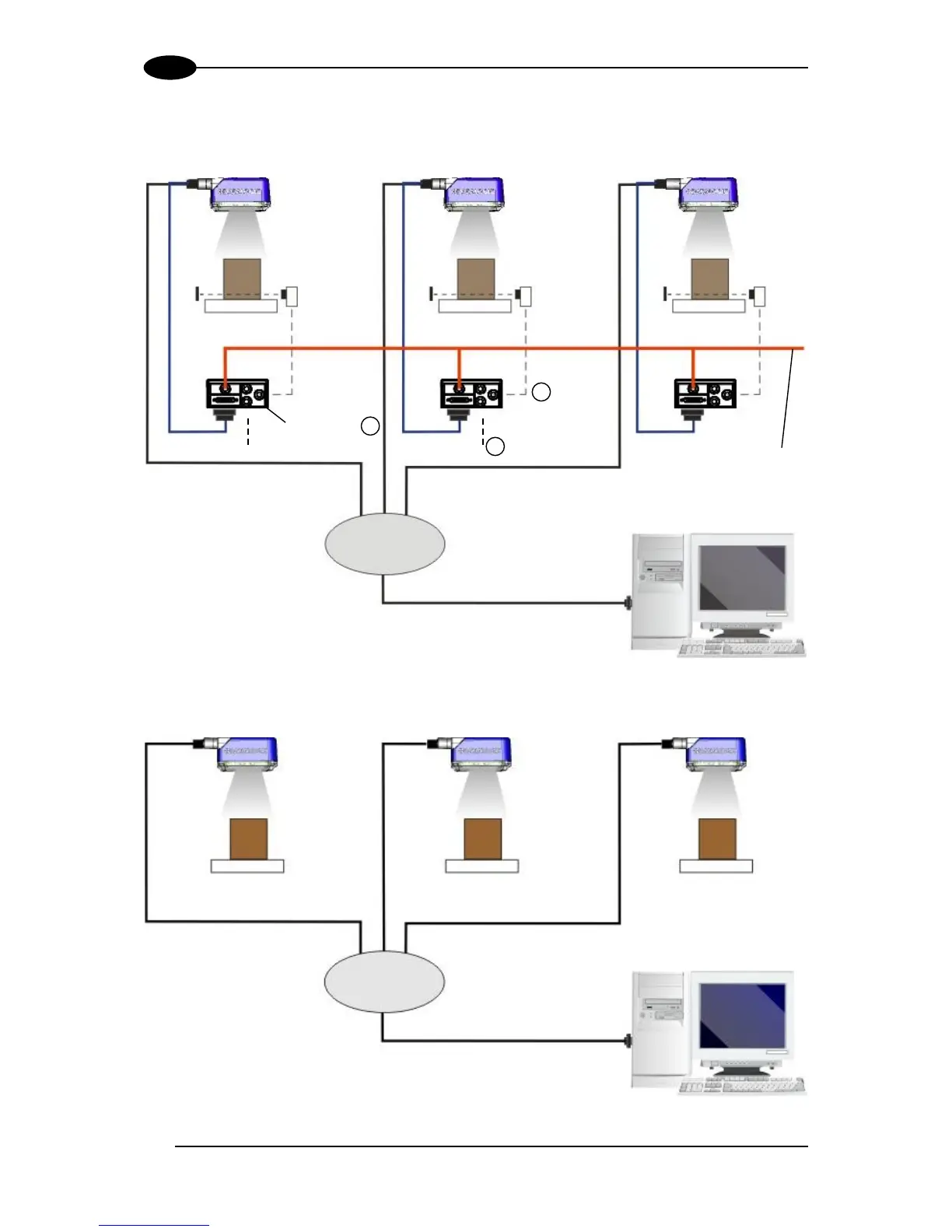

When using a Local Area Network (LAN), one or more Matrix 300N readers can be
connected to the network by using CAB-ETH-M0x cables:
Figure 59 - Ethernet Network Layout
Figure 60 - POE Ethernet Network Layout
 Ethernet Interface
 Auxiliary Serial Interface (RS232 – Data Monitor)
 External Trigger (for One Shot or Phase Mode)
CBX
Matrix 300N
Host
NETWORK
CAB-ETH-M0x
CAB-DSxx-S
1
2
3
Power
Matrix 300N
Host
PoE Switch
CAB-ETH-M0x
Ethernet Interface

Datalogic Matrix 300N Specifications

General

Type	Barcode module bar barcode readers
Sensor type	CMOS
Scanner type	1D/2D
Yaw reading angle	0 - 24 °
Optical sensor resolution	1024 pixels
Linear (1D) barcodes supported	-
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Input voltage	10 - 30 V
Power consumption (typical)	5 W
Connectivity technology	Wired
Certification	AIM DPM, ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 16022, ISO/IEC 18004, AS9132A
Product color	Blue, Metallic
Housing material	Aluminium, Plastic
International Protection (IP) code	IP67
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	54 mm
Width	75 mm
Height	62 mm
Weight	238 g
