Codabar Set Length 2
This feature specifies one of the bar code lengths for Codabar Length Con-
trolCodabar Length Control. Length 2 is the maximum label length if in
Variable Length Mode, or the second fixed length if in Fixed Length Mode.
The length includes the bar code’s sta
rt, stop, check and data characters.
The length must include at least one data character.
The length can be set from 3 to 50 char
acters. A setting of 0 specifies to
ignore this length (only one fixed length).

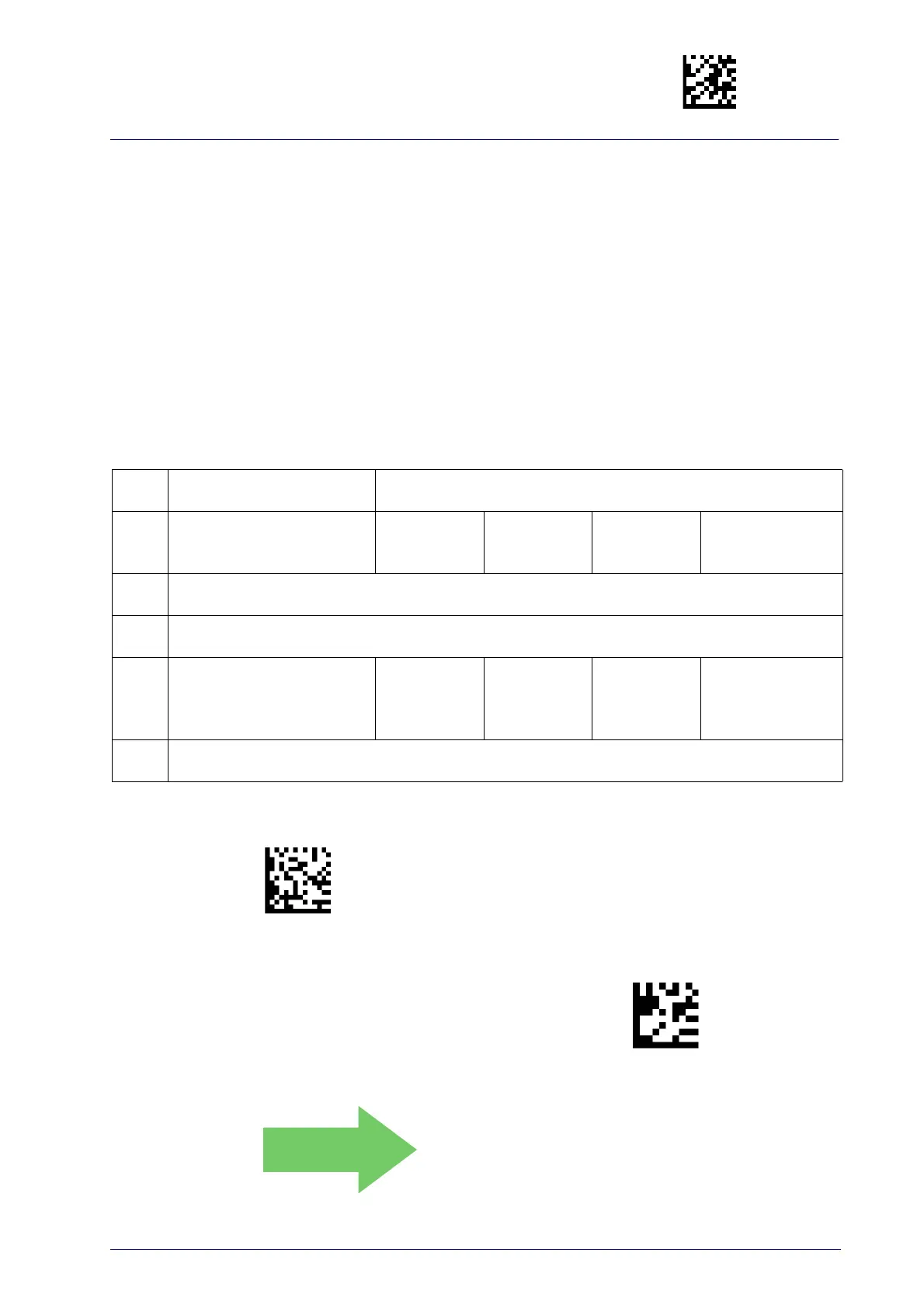

Table 15 provides examples for setting Length 2. See page 290 for detailed
instructions on setting this feature.
Table 15. Codabar Length 2 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (and pad
with
leading zeroes)
00 Ignore This
Length
07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABAR LENGTH 2 SETTING
4
Scan Two Characters
From
Appendix D,
Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Codabar Length 2 Setting
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry string. You can then start
again at the beginning.
CANCEL
50 = Length 2 is 50 Characters
To Next Page
