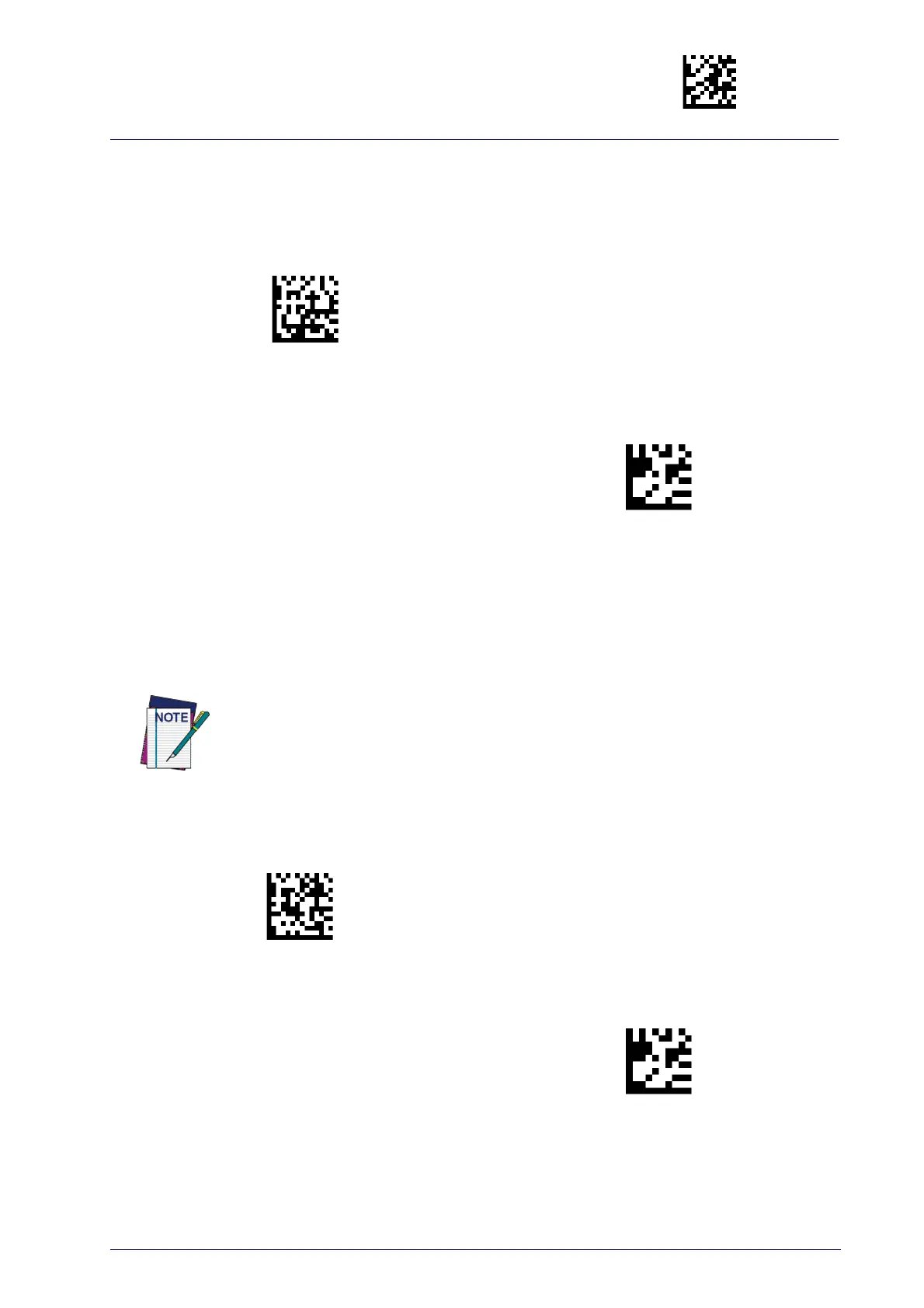

Enter/Exit Programming Mode
Product Reference Guide 247
RS-485 Cradle Address
Specifies the Address for the Cradle in the RS-485 network.
Set Cradle Address
To configure this feature, scan the ENTER/EXIT
PROGRAMMING MODE bar code above, then the bar
code at left followed by the digits from the Alphanu-
meric characters in
Appendix D, Keypad repre-
senting your desired character(s). End by scanning
the ENTER
/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not
save the entry string. You can then start
again at the beginning.
CANCEL
.
RS-485 Slave Minimum Address
Specifies the minimum address that can be set for a Cradle in an RS-485
network.
Slave Minimum Address
To configure this feature, scan the ENTER/EXIT
PROGRAMMING MODE bar code above, then the bar
code at left followed by four digits from the Alpha-
numeric characters in
Appendix D, Keypad rep-
resenting your desired character(s). End by scanning
the ENTER
/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not
save the entry string. You can then start
again at the beginning.
CANCEL
The maximum number of cradles in a single network is 16 (including the Master if
present). All cradles in the system must have different addresses.
