Datalogic PowerScan 9501-AR Series

Technical Specifications
318 PowerScan™ PD9531-AR/PBT9501-AR/PM9501-AR
Standard Cable Pinouts
The data below provides standard pinout information for the interface cable.

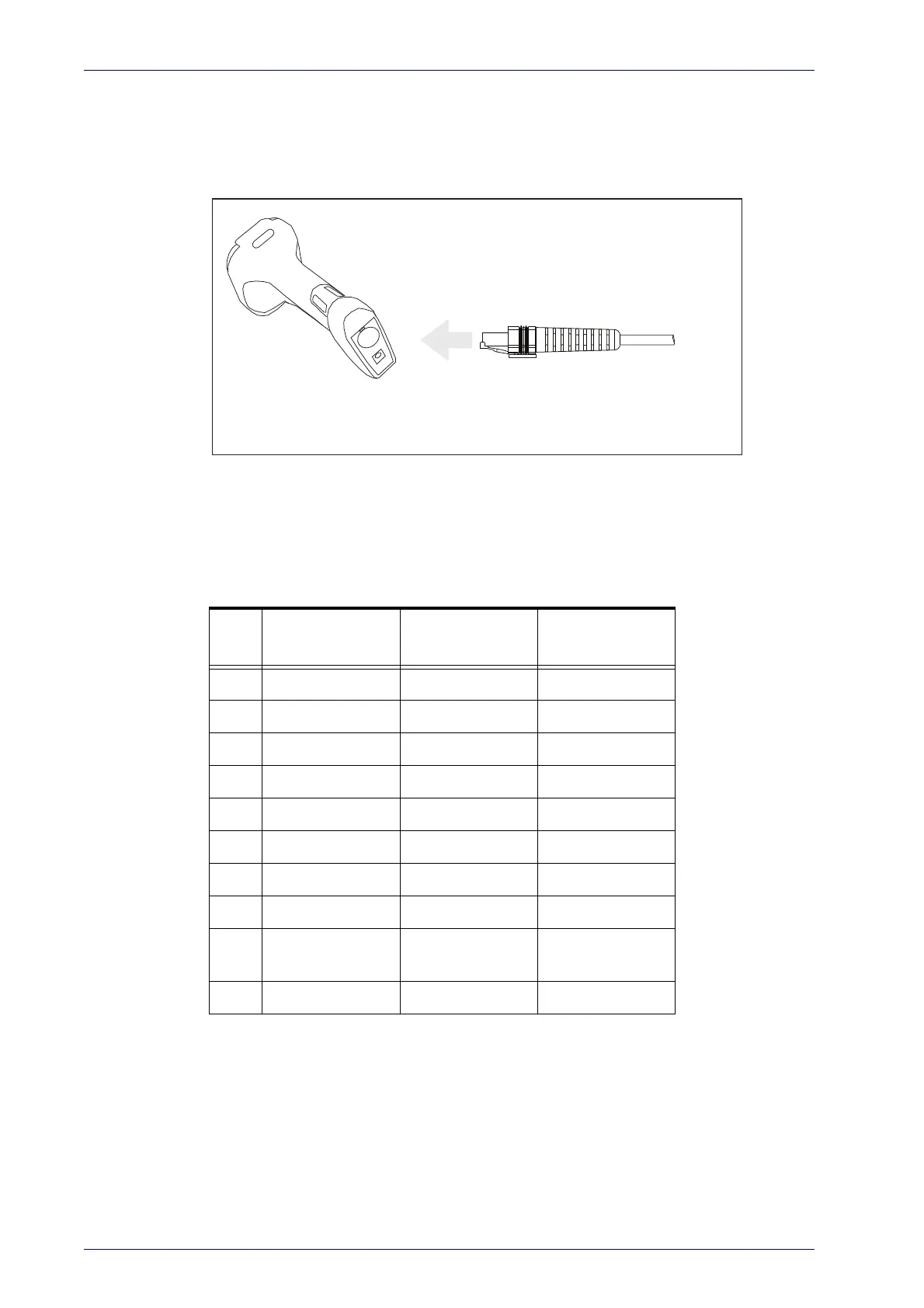

Figure 11. Standard Cable Pinouts: Handheld
The signal descriptions in Table 47 apply to the connector on the reader and
are for reference only.
Table 47. Standard Cable Pinouts
Pin RS-232 USB
Keyboard
Wed
ge
1 RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND
5 RX
6 TX
7 VCC VCC VCC
8 CLKOUT (PC side)
9
DATAOUT (PC
si
de)
10 CTS (in)
