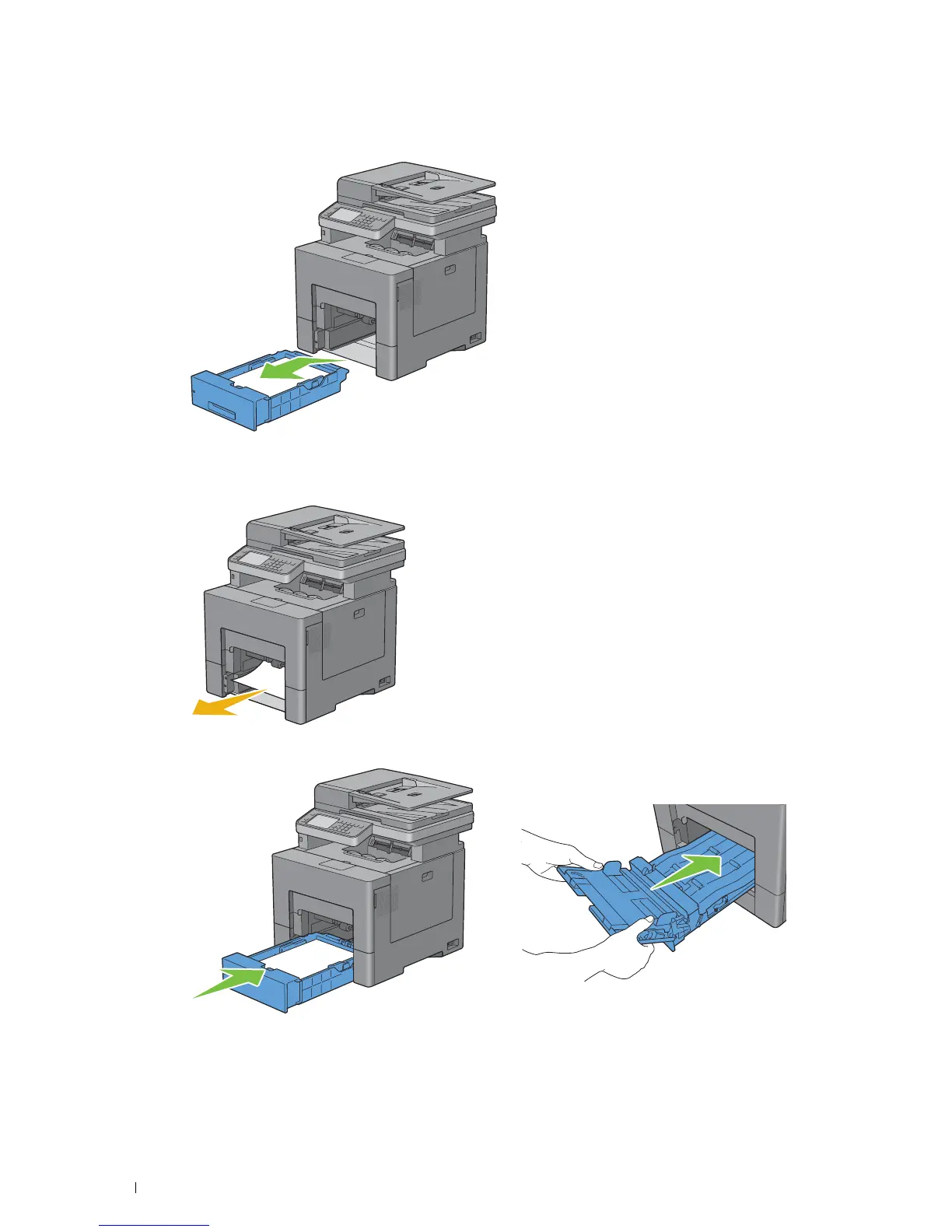

Hold tray1 with both hands, and remove it from the printer.

If you can see the jammed paper:

a

Remove the jammed paper.

b

Reinsert tray1 and the MPF into the printer.

If you cannot see the jammed paper:

a

Go to the next step.

Clearing Jams 524
