5

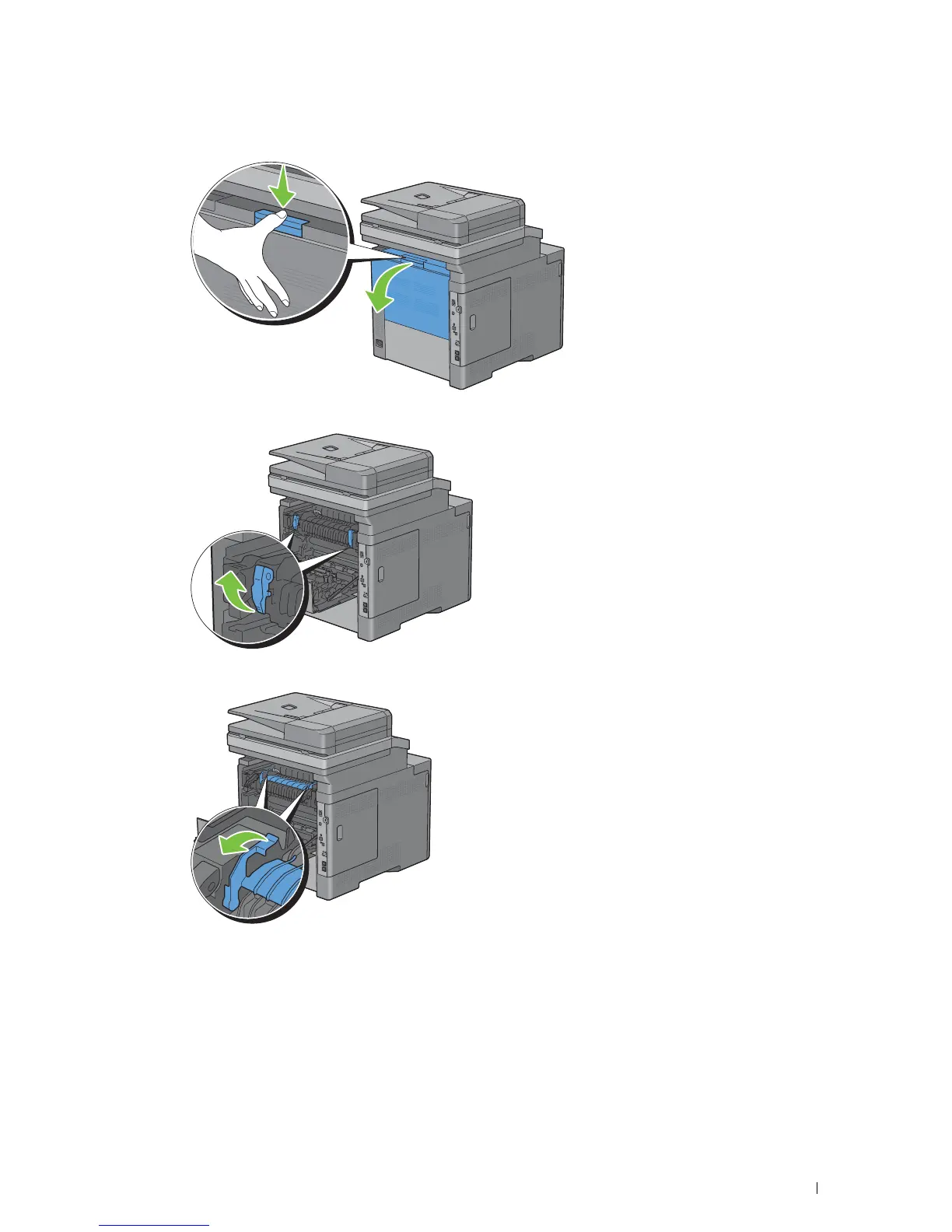

Push down the latch to open the rear cover.

6

Lift the levers on both sides of the fusing unit.

7

Hold and lower the tab to open the inner part.

Clearing Jams 525
