1186 Managing IPv4 and IPv6 Multicast
IGMP Proxy Interface Configuration
The IGMP Proxy is used by IGMP Router (IPv4 system) to enable the system
to issue IGMP host messages on behalf of hosts that the system discovered
through standard IGMP router interfaces. Thus, this feature acts as proxy to
all hosts residing on its router interfaces.
Use the Interface Configuration
page to configure IGMP proxy for a VLAN
interface. You must have configured at least one VLAN routing interface
before configuring or displaying data for an IGMP proxy interface, and it
should not be an IGMP routing interface.
To display the page, click IPv4 Multicast
→
IGMP
→
Proxy Interface
→
Interface Configuration in the navigation panel.

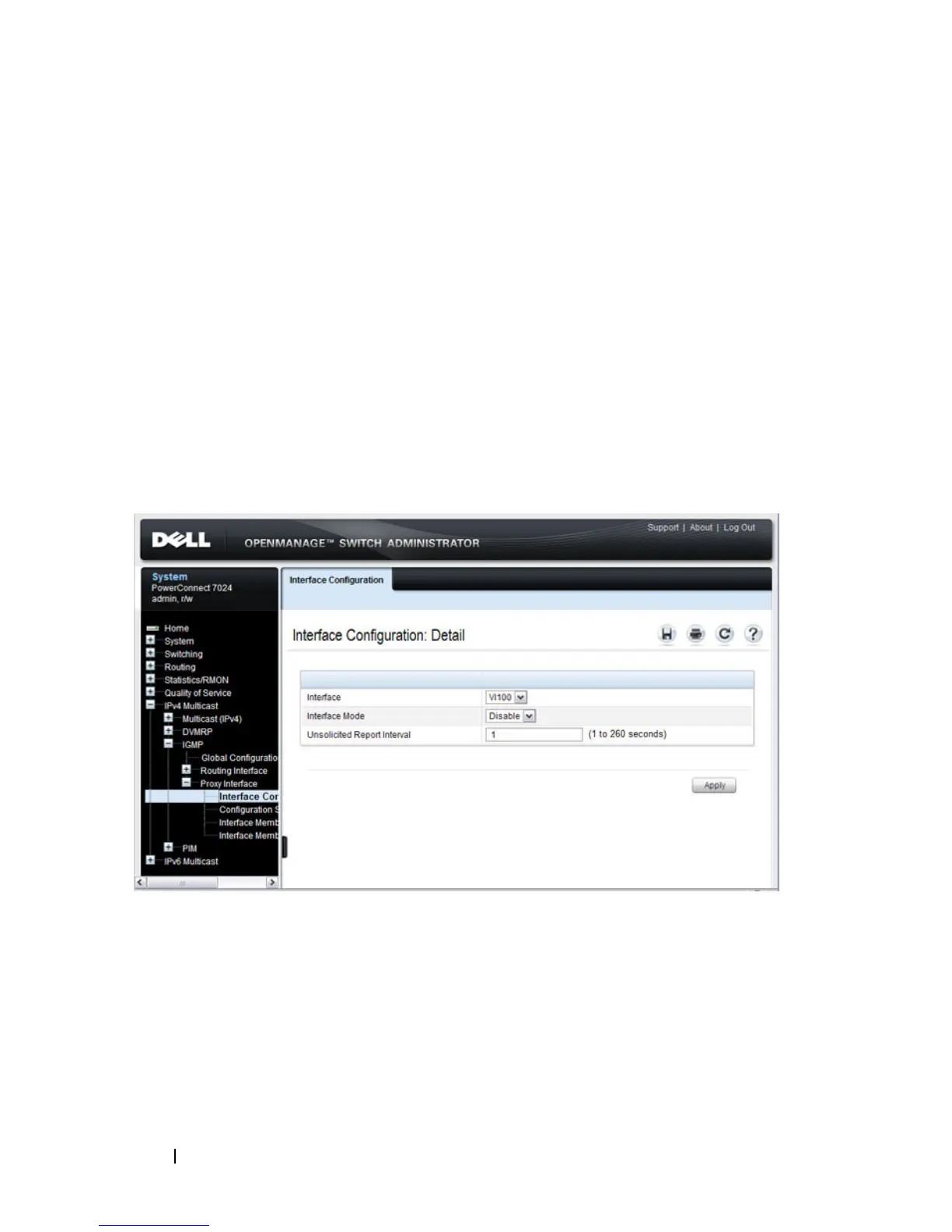

Figure 42-22. IGMP Proxy Interface Configuration
