Configuring L2 Multicast Features 735

MFDB MLD Snooping Table

Use the MFDB MLD Snooping Table page to view the MFDB MLD

snooping table settings for individual VLANs.

To display the MFDB MLD Snooping Table page, click Switching

→

Multicast Support

→

MLD Snooping

→

MFDB MLD Snooping Table in

the navigation menu.

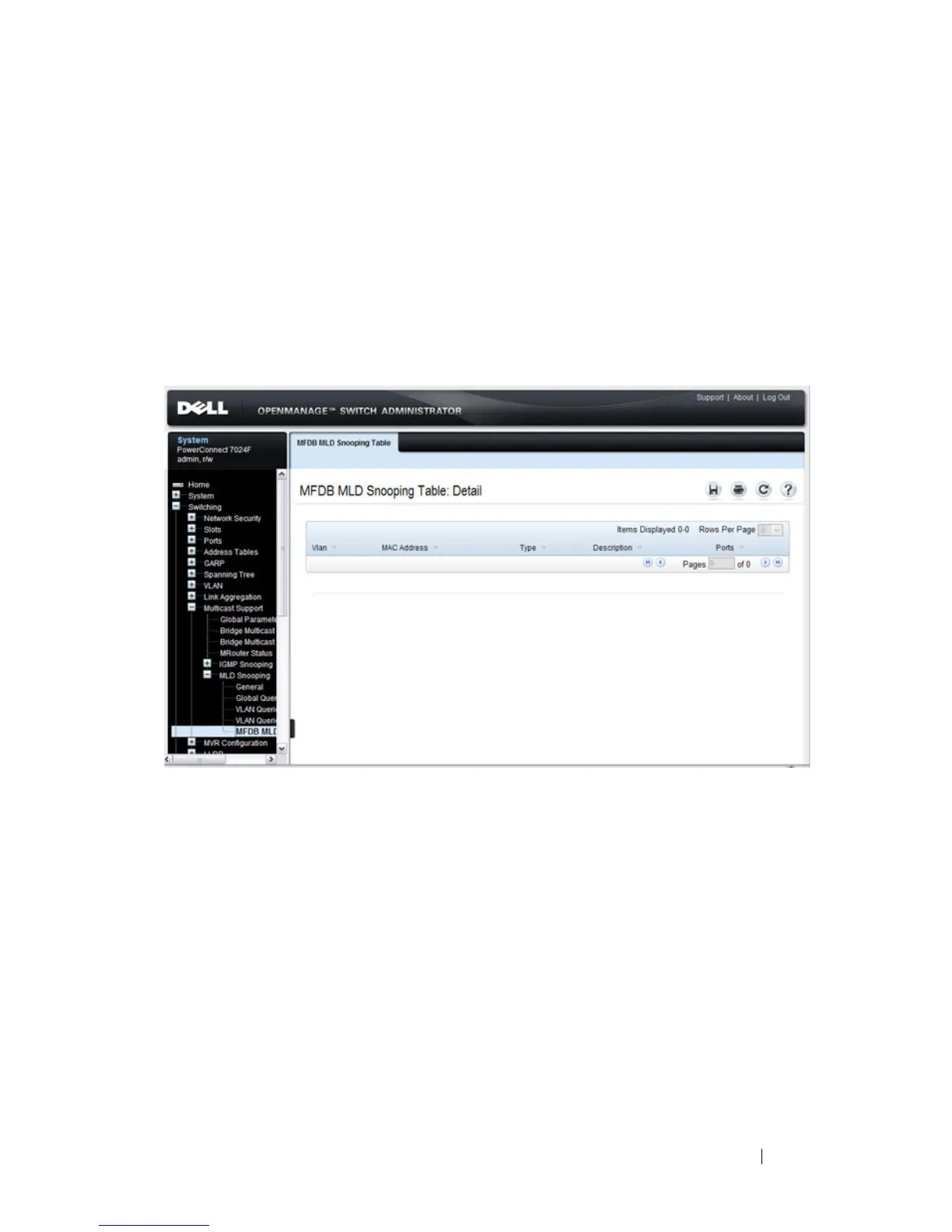

Figure 25-21. MFDB MLD Snooping Table
