Configuring L2 Multicast Features 723

Global Querier Configuration

Use the Global Querier Configuration page to configure IGMP snooping

querier settings, such as the IP address to use as the source in periodic IGMP

queries when no source address has been configured on the VLAN.

To display the Global Querier Configuration page, click Switching

→

Multicast Support

→

IGMP Snooping

→

Global Querier Configuration in

the navigation menu.

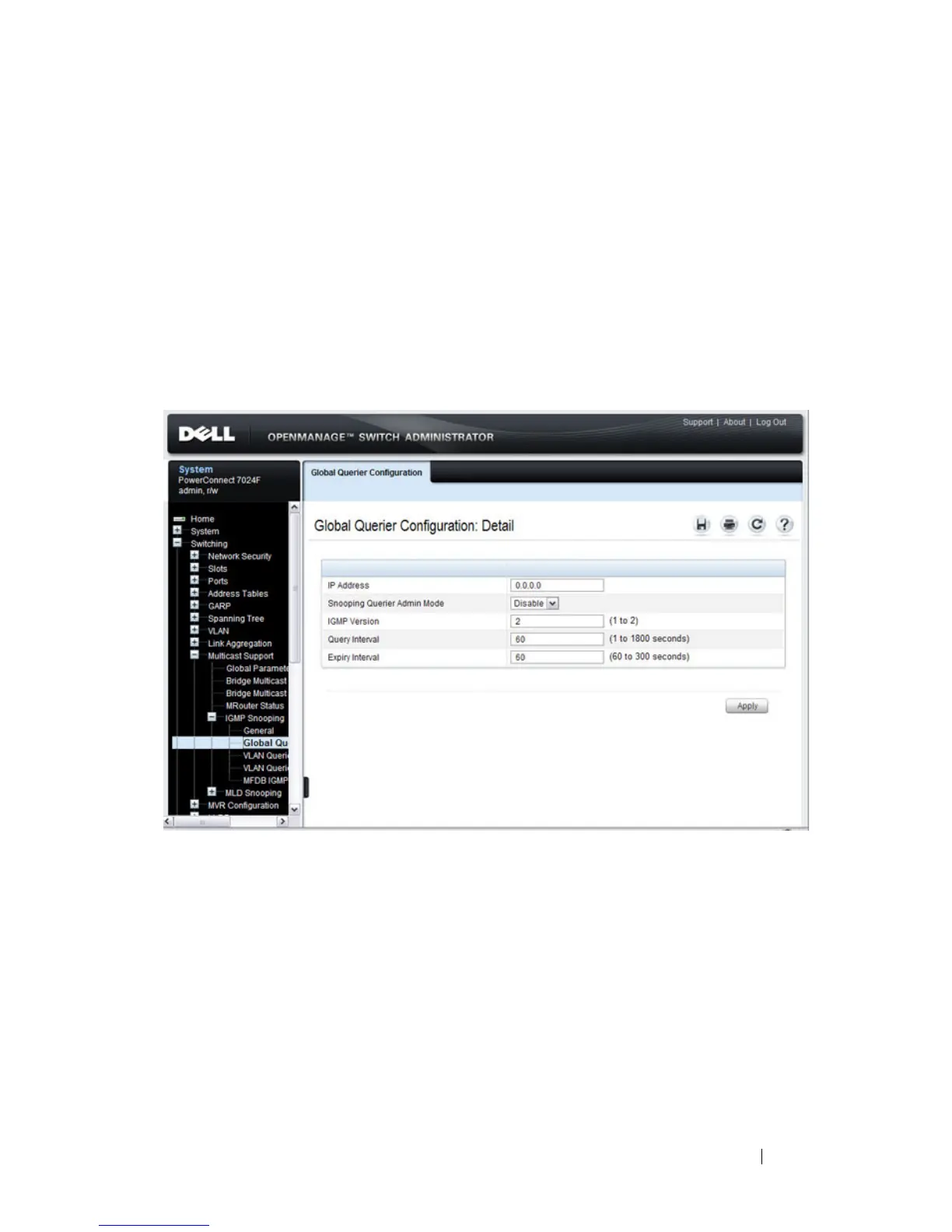

Figure 25-8. Global Querier Configuration
