596 Configuring VLANs

Double VLAN Interface Configuration

Use the Double VLAN Interface Configuration page to specify the value of

the EtherType field in the first EtherType/tag pair of the double-tagged

frame.

To display the Double VLAN Interface Configuration page, click Switching

→

VLAN

→

Double VLAN

→

Interface Configuration in the navigation

panel.

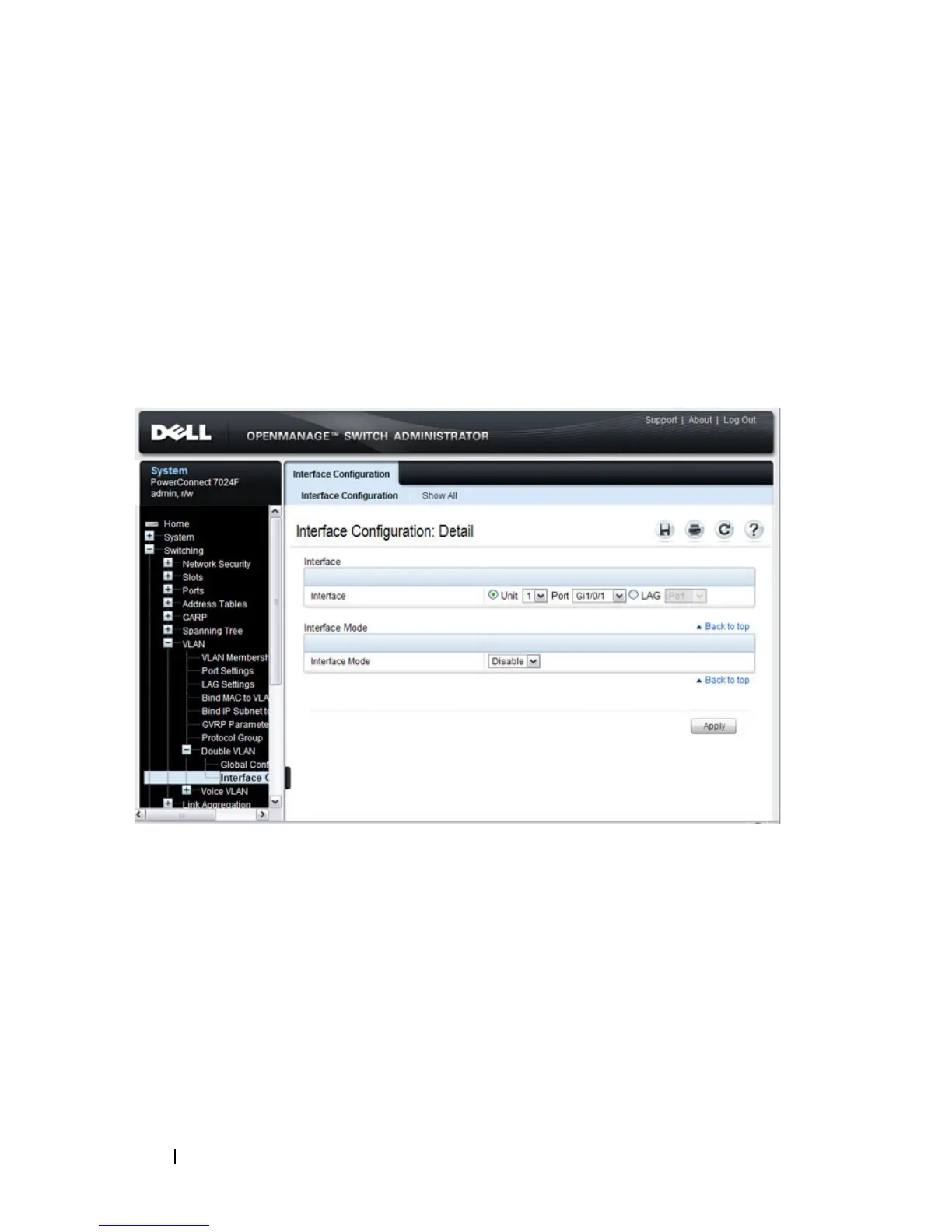

Figure 21-23. Double VLAN Interface Configuration

To view a summary of the double VLAN configuration for all interfaces and to

edit settings for one or more interfaces, click Show All.
