Dell Networking 7048 User Manual

Managing IPv4 and IPv6 Multicast 1193
MLD Routing Interface Cache Information
The Interface Cache Information page displays cache parameters and data
for an IP multicast group address that has been reported to operational MLD
routing interfaces. You must configure at least one MLD VLAN routing
interface to access this page. Also, group membership reports must have been
received on the selected interface in order for data to be displayed here. To
access this page, click IPv6 Multicast
→ MLD → Routing Interface →
Cache Information in the navigation panel.

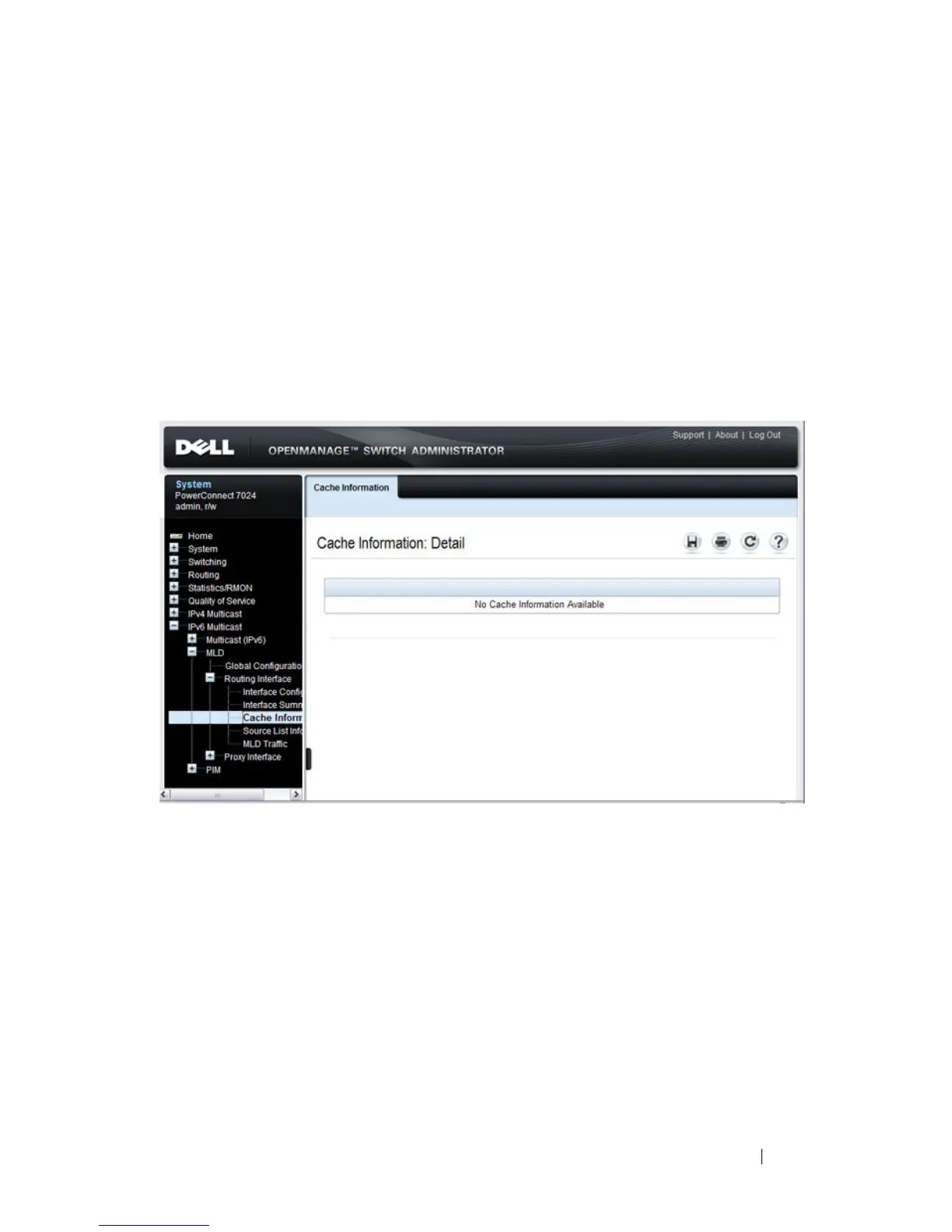

Figure 42-29. MLD Routing Interface Cache Information
