Configuring L2 and L3 Relay Features 919

DHCP Relay Agent Configuration

Use the Configuration

page to configure and display a DHCP relay agent.

To display the page, click Routing

→

DHCP Relay Agent

→

Configuration

in the navigation panel.

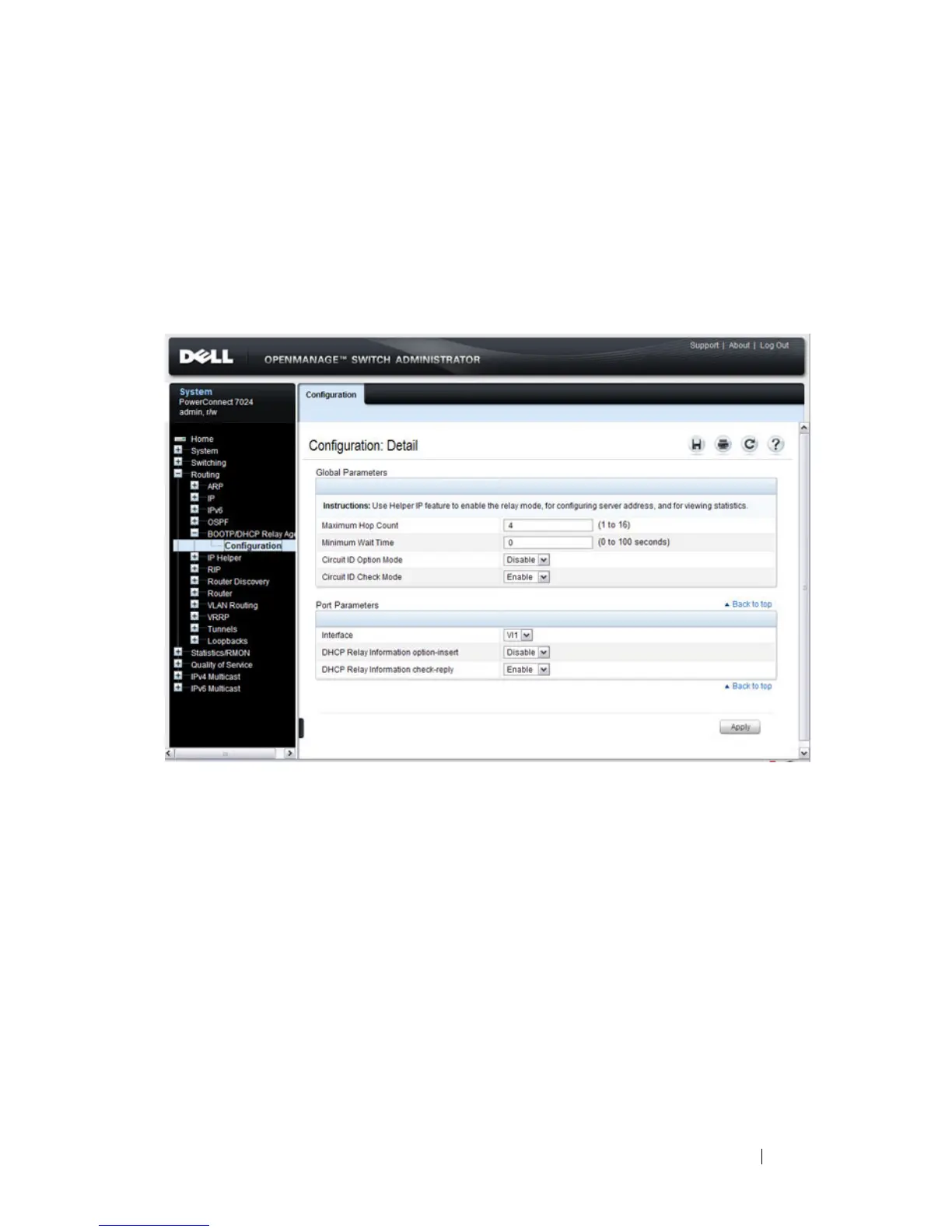

Figure 33-7. DHCP Relay Agent Configuration
