Confi
gurin
g L2 an
d L3 Relay
Featur
es
917
DHCP Relay In
terface Sta
tistics
Use this page to di
splay sta
tistics on DHCP Relay r
equests re
ceived on a
selected port. T
o access t
his page, click
Switching
→
DHCP Relay
→
Inte
rface Statisti
cs
in the navigation panel.

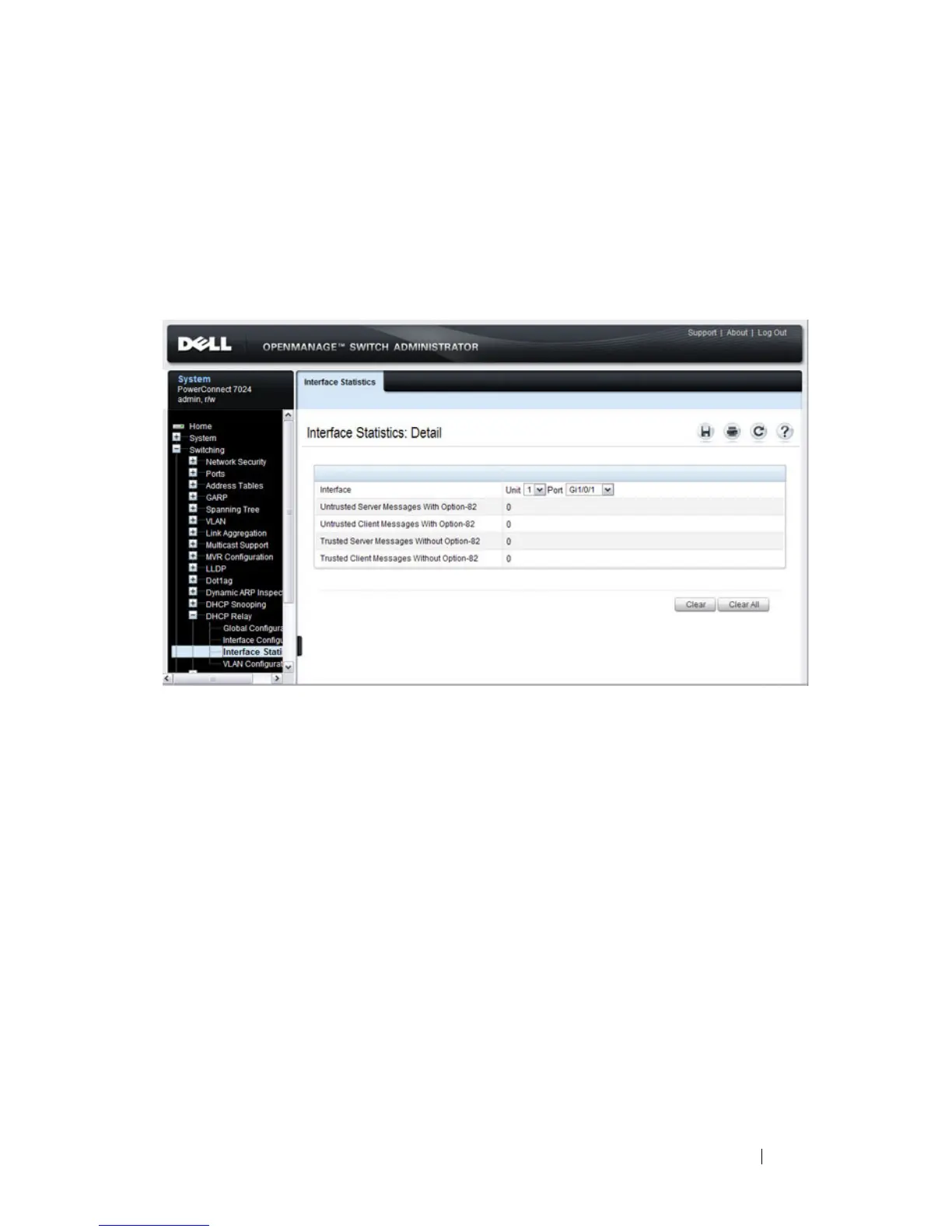

Figure
33-4.
DHCP Relay
Interfac
e Sta
tistics
