1192 Managing IPv4 and IPv6 Multicast

MLD Routing Interface Summary

Use the Interface Summary page to display information and statistics on a

selected MLD-enabled interface. You must configure at least one IGMP

VLAN routing interface to access this page.

To access this page, click IPv6 Multicast

→

MLD

→

Routing Interface

→

Interface Summary in the navigation panel.

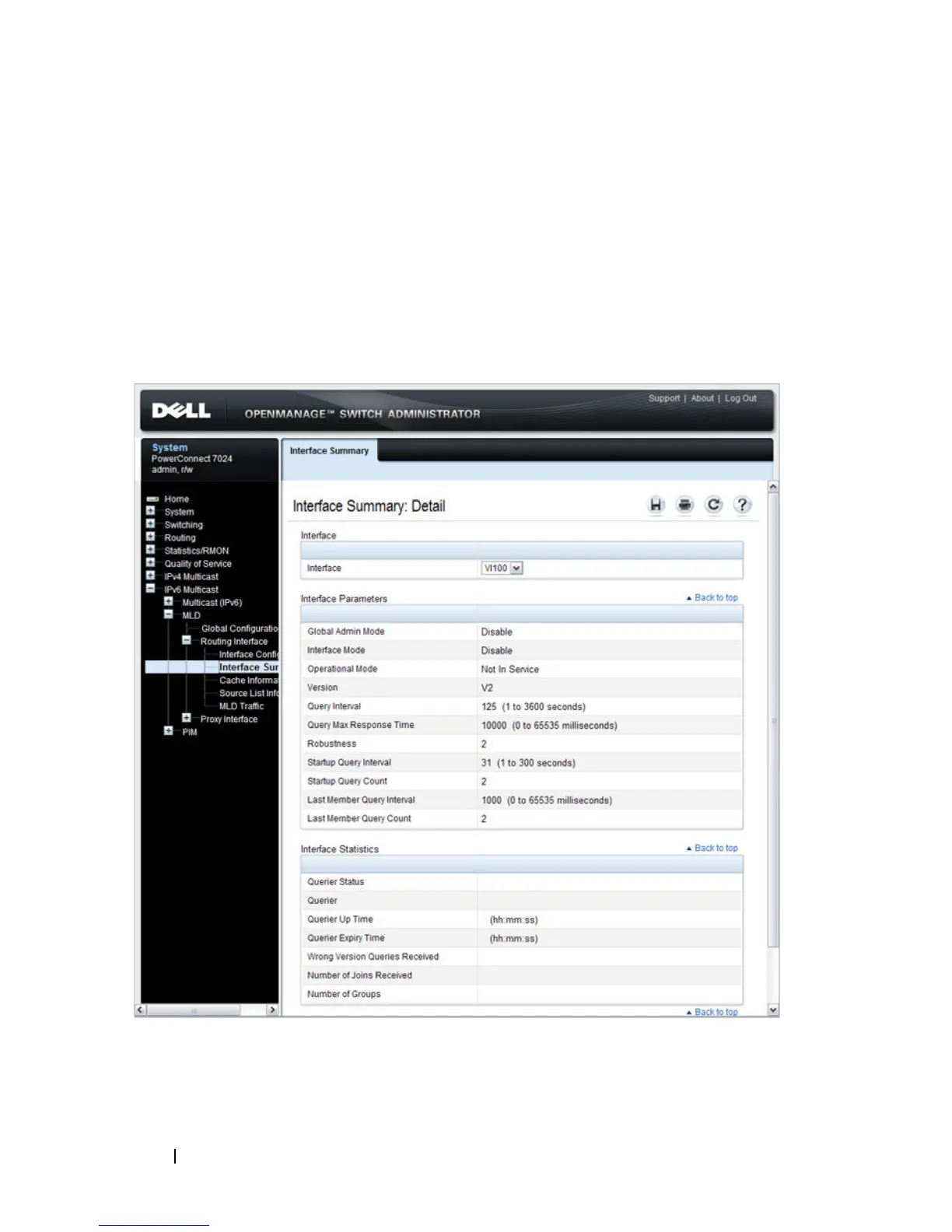

Figure 42-28. MLD Routing Interface Summary
