890 Configuring IP Routing

ARP Table Configuration

Use the Table Configuration page to change the configuration parameters for

the Address Resolution Protocol Table. You can also use this screen to display

the contents of the table.

To display the page, click Routing

→

ARP

→

Table Configuration in the

navigation panel.

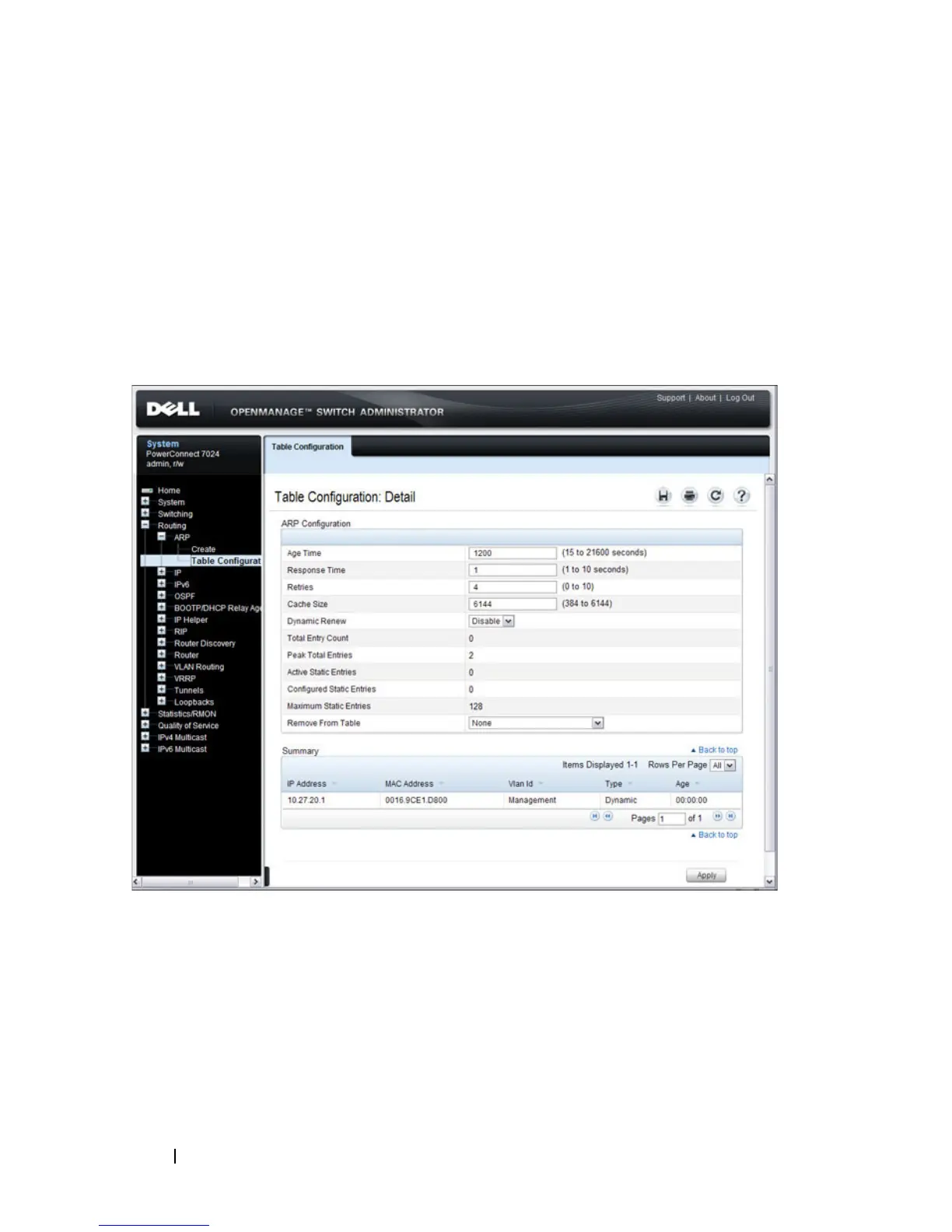

Figure 32-4. ARP Table Configuration
